Konstrack - Sluice Feeder

During operation of aspiration and extraction plants, as a rule, a certain level of vacuum is maintained inside the housing. Therefore, such equipment is made as hermetically sealed as possible.

But at the same time there is a need to remove captured dust during operation of gas purification unit.

To solve this problem, equipment is used, which maintains the level of tightness in the hopper.

One of the varieties of such equipment are sluice feeders.

We are manufacturers of sluice feeders for use with TM Konstrack bag filters and other manufacturers.

Depending on the type and characteristics of the environment, mode of operation and technological conditions of production, our company will select and manufacture the

Sluice gates have proven themselves when installed under the hoppers of cyclones, battery cyclones, bag filters and electrostatic precipitators. It is not recommended to install them on sticky dusts.

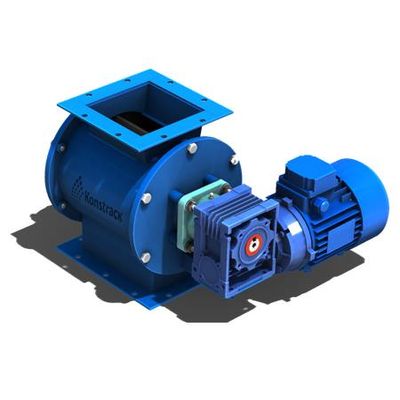

The sluice gate consists of a body, a cell rotor, body covers and a gearmotor.

The material to be moved fills the top cells of the rotor through the upper spigot of the housing.

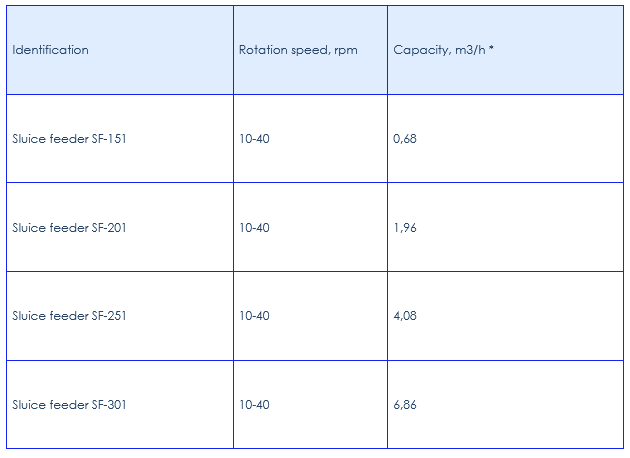

As the rotor rotates, the filled cells move downward and the material is removed through the bottom spigot. The capacity of the sluice gate depends on the volume of the cells and the
