Kontakt.io - Model Nano Tag -Smallest, Disposable, Wearable, Bluetooth LE Tag

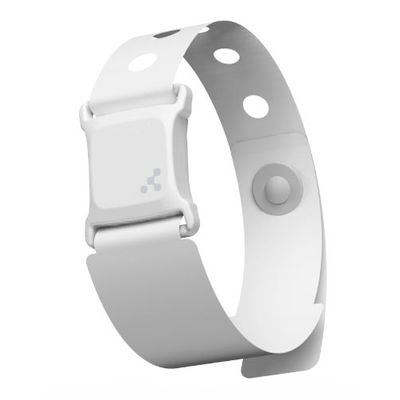

Compatible with hospital bands.
Affordable, for $4.99* per unit, Nano Tag is designed to keep pace with patients and visitor safety and workflow optimization. Simply scan the QR code, assign it to your patient, activate with a quick press and let it run for up to 3 months (at 1 Hz).

Sleek design for hospitality, event, and sport environments.
Nano Tag is so little, lightweight, and unobtrusive that your guests - kids and adults - will forget they are wearing it.

Green battery technology with no Lithium-ion.
Nano Tag uses a non-toxic, Silver Oxide battery that can be recycled with electronic devices or plastic, so that you can easily dispose it when the battery runs out.

Mobile friendly.
Nano Tag seamlessly integrates with your iOS or Android application. From any smartphone with Bluetooth® LE support, your app can easily identify & locate a Nano Tag from its unique UUID.

Works with Kontakt.io & other Bluetooth® LE gateways or the WiFi network you already have in place.

Seamlessly managed at enterprise scale.

• Onboard and bulk-register Nano Tags and other IoT devices with one click
• Manage and assign device user access privileges
• Assign meta data tags to devices and locations leveraging user-defined entities
• Set up monitoring rules for users and locations including not-seen, removed or low-on-battery devices
• And more!

Electronics
Microcontroller
Dialog DA14531
16 MHz 32-bit Arm® Cortex® M0+
Memories
1Mbit Flash, 48KB RAM, 144KB ROM, 32KB OTP
Operation
1.8V - 3.3V; 14°F to 140°F (-10°C to +60°C)

Dimensions and weight
Height
0.9 in | 23 mm
Width
0.5 in | 12.7 mm
Depth
0.3 in | 7.62 mm
PCB dimensions
0.4 x 0.4 in | 12 x 12 mm

Battery
Model
Silver Oxide battery, disposable, non-toxic, medically safe
Number of batteries
1
Replaceable
No
Operating temperature range
14°F to 140°F | -10°C to 60°C
Battery life
1 year shelftime, 3 months at 1Hz
Activation
Click the button to activate, LED will start blinking

Casing
Colors
RAL 9003
Protection
IP 65
Water resistant for easy clearing
Yes
Antibacterial surface
Optional
Tamper-proof
No
Mounting
2 slots for wristband

Certification
FCC, CE, RoHS, REACH

Product identification
QR code
Yes, MAC address
