Kosa - Model 868 -High Flow Filter
High Flow LD Series Filter Cartridges are made from depth fine PP or GF non-woven fabricsJhe filter has a big diameter of 6 inch/lS2mm and no inner core, single open.The inside to outside flow pattern ensure thai all the particles will be intercepted at the inside of the filter.The long service life and high flow rate result in low investment and less manpower in many applications.
Most popular related searches
high flow series filter cartridge
filter cartridge
liquid filtration
high flow filter cartridge
cartridge filter
high flow cartridge filter
polypropylene filter cartridge
gaskets
polypropylene filter
- High filtration area, high flow rate.
- With depth fine non-woven fabrics and scientific design, the filter has a good structure which has high dirt holding capacity, and result in long service life.
- 100% PP material makes the filter cartridge got excellent chemical compatibility. It is suitable for various liquid filtration.

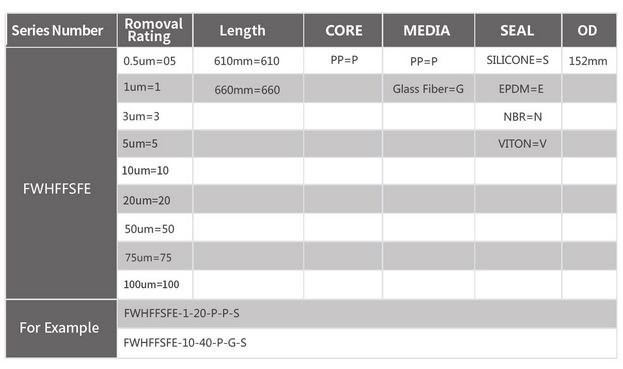

- Dimension:
- (Removal Rating]: O.Sum,lum,3um,Sum,10um,20um,SOum,7Sum,100um
- (Length] :610mm / 660mm
- |O0]: 0152mm
- Material of Constructions:
- (Media): Polypi opylene(PP)/Glass Fiber
- (Drain layer]: China Non-Woven Fabiic
- (End cap]: Polypropylene(PP)
- [Gasket]: Silicone. EPDM, NBR.Viton
- (Core]: Polypropylene(PP)
- Performance:
- (Max. Operating temperature]: 80°C
- (Max. Operating DP]: 4.08ar@21°C,2.4Bar@80oC
