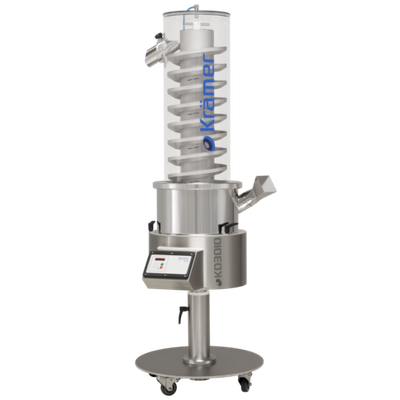

Krämer - Model KD3010 -Tablet Deduster
Krämer AG, established in 1975, is a pioneering company specializing in the production of equipment for conveying, dedusting, and polishing tablets and capsules. Known for inventing the first vertical vibratory tablet deduster, the company has consistently led innovation in the pharmaceutical, nutraceutical, and vitamin industries. Krämer's products are designed for optimal performance in dust tight and high containment environments, catering to specific application requirements in collaboration with global tablet press, capsule filling, and packaging line manufacturers. The KD70A Series is SMEPAC certified, adhering to ATEX guidelines for safety and efficiency. Krämer also offers the Econo-Line KD60 Series for simpler needs, featuring a patented drive unit and optional metal detector integration. Over 10,000 of their machines are in operation worldwide, valued for their quality and reliability by multinational and regional manufacturers.
Tablet deduster with our unique vibratory unit. Reasonable alternative to the mid-range dedusters featuring reduced user functionalities.
- Upward conveying height 250-500 mm
- Improved dedusting and deburring capabilities thanks to optimized combination of vibration, dust agitation, air and vacuum suction
- Easy operation with potentiometer
- Optimal conveying capacity
- Easy height adjustment, full 360° freedom of rotation at tablet inlet
- Vibration-free housing, patented drive unit
- Compact design, minimum footprint
- Easy assembly and disassembly, no tools are needed
- Easy to clean
KC3020 Frequency controller
The KD30 Series utilize the KC3020 frequency controller. The keypad controller allows the operator to turn the machine on and off, and the LED screen to chose the necessary conveying speed to operate with the tablet press.
Krämer patented Vibratory drive system
The KD30 Series vibratory drive features the Krämer patented counterweight system which allows for operation of the deduster with no vibration being transmitted to up stream or down stream equipment. Because of the counterweight the machine is extremely quiet, low maintenance and allows for precise vibration control which is extremely gentle on the tablets. The silicone membrane prevents dust from entering the vibratory drive unit.
Tablet inlet options
The included tablet inlet adapter connection to the tablet press and upstream equipment with the use of a rectangular tablet inlet 110×70 mm. If the adapter is not being used, a hose can directly be attached to the round Ø 60 mm inlet. The inlet can be rotated 360° independent of the outlet. The deduster is easily adjustable to various tablet press discharge configurations.
Utility Connection Ports
All Krämer dedusters feature a 2 inch Ø Tri-Clamp vacuum dust collection port for ease of assembly of a dust collection hose. Various optional hose adaptors are available upon request. In addition, the power supply cable uses a quick connect plug.
Optimal Process Viewing
The KD30 Series uses an acrylic housing for optimal process viewing. In addition, dust agitation is supplied with a compressed air nozzle to get the cleanest tablets possible.
Ease of assembly and Disassembly
No tools are needed to assemble or disassemble the machine for cleaning. All product contact surfaces are AISI 316L stainless steel. All Krämer machines minimize the number of parts to be cleaned, and keep the weight of each part minimal for ease of handling. This assures quick and effortless cleaning processes.
