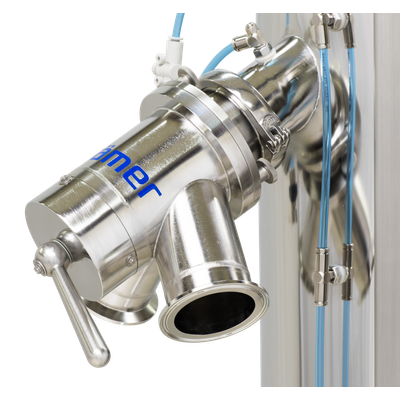

Krämer - Model KV20M -Manual 2-Way Diverter for Tablet and Capsule Filling
FromKrämer AG
The KV20M is a manual 2-way diverter designed to streamline the continuous filling of containers with tablets or capsules. Built with precision, it supports diverse pharmaceutical production requirements. Manufactured by Krämer, a Swiss company known for quality engineering, the diverter operates manually, providing two outlets. It handles product contact with AISI 316L and HMPU7 materials, ensuring high-grade durability. The design features a product inlet with DIN and tri-clamp options, supporting various tablet and capsule sizes. Its impressive conveying speeds cater to multiple formats, including mini and micro-tablets, effervescent varieties, and capsules ranging from size 4 to 00. Additionally, it incorporates explosion protection and compliance with ATEX, cGMP, and CE standards. Options for outlet adapters, filling level sensors, and validation documentation further enhance its adaptability to specific operational needs. This diverter exemplifies Krämer's commitment to providing reliable and efficient pharmaceutical solutions.Most popular related searches
Manual 2-way diverter used for continuous filling of containers with tablets or capsules.
- Available as DT (dust-tight) and WIP (Wash-in-Place) version
- Manually processed filling of two batches, alternating
- Compatible with deduster models KD7010, KD7015, KD7030, KD7035, KCP10 and KCP15
- Classification: Atex Zone II 2D/- Db 140 °C
- Certification: OEB5 (<1 μg/m³) acc. SMEPAC
- Number of outlets : 2
- Drive unit technology : Operation by hand
- Product contacting parts : AISI 316L, HMPU7
- Weight : 4.6 kg
- Water consumption : Ø6/4mm, 16 l/min (p=2 bar)
- Product inlet : DIN 50, 2", 2.5", 3" tri-clamp
- Product outlet : ISO DN 50 tri-clamp
- Processing of tablets (var. forms ) Ø3-35 mm
- Processing of mini/micro-tablets Ø1.5-3 mm
- Processing of effervescent tablets Ø25-35 mm
- Processing of capsules Nr. 4-00
- Conveying speed mini/micro-tablets <Ø2.5 mm : 10'300'000 tabs/h
- Conveying speed tablet Ø5 mm : 6'300'000 tabs/h
- Conveying speed tablet Ø13 mm : 574'000 tabs/h
- Conveying speed tablet Ø20 mm : 240'000 tabs/h
- Conveying speed tablet Ø25 mm : 95'000 tabs/h
- Conveying speed tablet Oblong 16.3 x 7.6 x 5.7 mm : 770'000 tabs/h
- Conveying speed capsule size Nr. 4 : 300'000 caps/h
- Conveying speed capsule size Nr. 3 : 300'000 caps/h
- Conveying speed capsule size Nr. 2 : 300'000 caps/h
- Conveying speed capsule size Nr. 1 : 300'000 caps/h
- Conveying speed capsule size Nr. 0 : 300'000 caps/h
- Conveying speed capsule size Nr. 00 : 250'000 caps/h
- Explosion protection ATEX 94/9/EG : II 2D/- Db 140 °C
- OEL Level acc. SMEPAC : OEB 5
- cGMP compliance
- CE compliance
- Option inlet adapter
- Option outlet adapter
- Option mini/micro-tablets
- Option WIP manual/auto
- Option filling level sensors
- Option validation documentation
- Option material certificates
