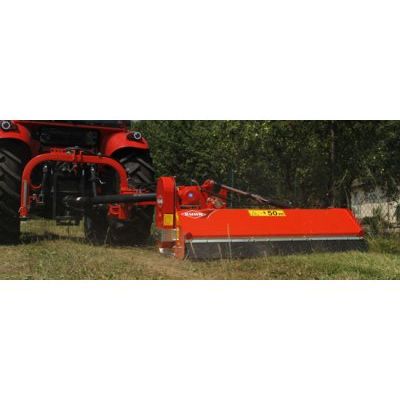

The robust design of this shredder is ideal for maintaining grassy areas, parks or gardens:
- frame in high strength steel,
- hammer knives with specific shape that prevents damage to the rotor in case of impact,
- large diameter rotor for top quality work.
High quality shredding accelerates decomposition resulting in tidy verges.
The roller being closely positioned to the rotor ensures great ground hugging. Cut grass is evacuated over the roller avoiding compaction. The rear flap with slits distributes the grass evenly for an aesthetically pleasing result.
The machine is protected by an anti-impact system with connecting rod on linkage system for lift.
Working width (m) 1.6
Transport width (m) 1.8
Diameter of roller (mm) 160
Rotor diameter (mm) 374
Working height adjustment Roller with fixed ends
Offset (mm) 2360
Working angle -45° to +90°
Minimum power requirement for PTO (kW) 30
Minimum power requirement for PTO (hp) 40
Maximum authorised tractor power (kW) 60
Maximum authorised tractor power (hp) 80
PTO speed (rpm) 540
Number of hammer knives 24
