Kytola - Model BA -Industrial Plastic Tube Variable Area Flow Meter

FromKytola Instruments Oy

SHARE

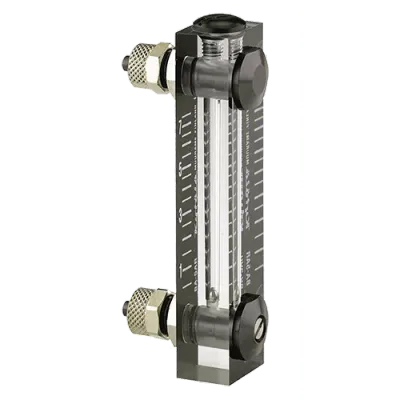

Kytola’s model BA measures and monitors low air flows with high precision. The finess of the flow meter lies in the skillfully manufactured components which ensure its accuracy and reliable operation in industrial applications. The body is made in one piece of precision-machined acrylic which prevents leaks as no attachments are required.

Most popular related searches

variable area flow meter

tube variable area flow meter

gas level monitoring

level monitoring

pressure monitoring

tube flow meter

Flow range air, 1.013 bar(a), 20°C:
min 0.2 – 1.4 NL/min
max 0.5 – 7.5 NL/min

Kytola`s variable area flow meter model BA is an excellent choice for the following applications:

gas purging for enclosures
gas purging for level measurement
gas purging for differential pressure measurements

Main technical features of the Kytola BA variable area flow meter:

for gas
with valve
machined acrylic body
clear, easy to read scales

Model: BA
Body: Acrylic (PMMA)
Float: AISI 316
Seals: Nitrile (*Viton®, EPDM)
Plugs: POM, aluminium
Valve housing: Aluminium
Valve spindle: AISI 316
Connections G/NPT: Rapid fittings for o.d. 6 mm / i.d. 4 mm hose
Max. pressure: 10 bar
Max. temperature: 75°C
Accuracy: ±10% F.S. (H2O, +20°C)
Weight: 60 g
*) Special construction on request
