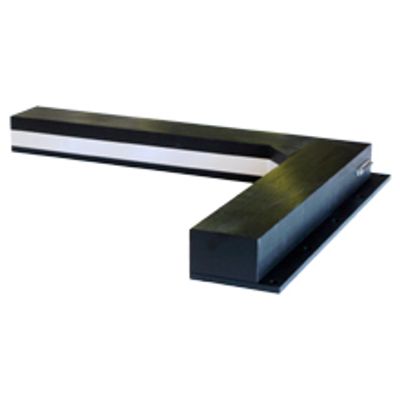

X-Scan Falcon - Model XL8800 -L-Shaped X-Ray LDA Camera
Developed for miscellaneous wheel inspection applications using panoramic x-ray sources, the XL8800 Series Line-Scan Camera by X-Scan Imaging is available in 0.4 and 0.8 mm resolution and 5 detector lengths ranging from 822mm to 1182mm. Other geometries can be provided as special requests.
Most popular related searches
- L-shape optimized for wheel inspection
- Rounded corners for reduced corner distortions
- Integrated X-Scan proprietary detectors
- Standard energy range of 40–160 KV
- Wide selection of resolutions from 0.05 mm t1.6 mm
- Software selectable resolution
- Low noise
- Wide dynamic range
- High x-ray sensitivity
- High MTF
- 16-bit analog-to-digital conversion
- Scan rates over 2000 lines/second
- Variable scan speeds with position synchronization
- Software development kit: device drivers, libraries, standard API
- X-ray inspection software with standard features
- Compact & rugged housing with minimal cabling
- Modular design for expeditious customization of length and shape
