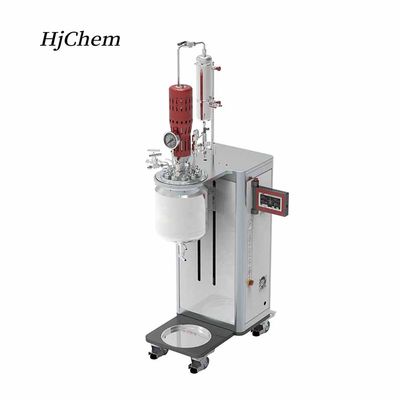

Hjchem - Lab Custom High Pressure Autoclave Stainless Steel Reactor
It is designed as a high pressure reactor for conducting controlled chemical or physical processes within a lab setting, and crucially, it is fully custom-built to meet the user’s precise specifications for volume, pressure, temperature, ports, agitation, and other critical parameters.Most popular related searches
high-pressure autoclave
high-pressure feed pump
gas mass flow metering
gas mass flow meter
mass flow metering
gas mass flow
mass flow meter
autoclave
electrical heating jacket
digital temperature controller
- Volume: 5/10/20/25/30L (customizable）
- Material: 316L (other special materials customizable)
- Structure: reactor lid is fixed, vessel can be lifted and tilted.
- Heating method: electrical heating or jacket circulating oil heating.
- Temperature: RT-300°C (customizable)
- Pressure: -0.1~10MPa (customizable)
- Agitation Method: mechanical stirring.
- Interfaces on the lid: temperature sensor, pressure gauge & rupture disc, gas inlet, vent, spare port,
- Power Supply: AC220V, 50HZ/60HZ
- Control: Touch screen control, PID self-tuning temperature control.
- Isobaric Feeding: Add liquid reactants during reaction (controlled total volume)
- High-Pressure Feed Pump: Introduce liquid reactants during reaction (precise flow rate control)
- Gas Mass Flow Meter: Accurately measure cumulative gas flow and instantaneous flow rate
- Built-in Cooling Coil: Enables rapid internal reactor cooling
- Condenser: Provides condensation reflux or solvent recovery functionality
- Process sampling function: rapid sampling and analysis during the reaction process.
