MaxTon - Model YS170 and YS300 -Lab Scale Roller Briquette Press for Research and Development
Maxton has engineered a series of roller briquette machines tailored for use in laboratories, research and development centers, as well as in the pharmaceutical industry. These devices are compact, straightforward to operate, and can be smoothly integrated into laboratory environments. The model 170 is particularly notable for allowing feasibility studies related to briquetting and compaction-granulation on a small scale, with capabilities for handling test quantities of 0.5-1 kg and continuous operations of a few kg per hour. A key feature of this equipment is that it can be disassembled, cleaned, and reassembled without specialized tools, facilitating easy maintenance. Additionally, the model 300 functions as a pilot-type roller briquette press mirroring the structure of large industrial machines. There are also specialized lab-scale models capable of mixing, heating, and briquetting processes, ideal for applications requiring easily configurable systems.
Maxton has developed a new range of roller briquette machine for laboratories use, Research and Development centers and the pharmaceutical industry as well.
These small briquette machines are compact and very easy to handle and use. They can be readily installed in research laboratories.
One type of small scale roller briquette presses is type 170.
This new micro model enables to make briquetting and compaction-granulation feasibility studies on a wide variety of products in very small quantities (about 0.5-1 kg for one test, a few kg/h in continuous use). Another advantage of this equipment is that the pieces in contact with the product can be easily and rapidly dismantled, cleaned and reassembled. These many pieces can be handled without any particular tools.
According to their configuration, the small scale briquette machine produce :
- either briquettes in varied shapes (pillow, soap, stick,…) and volume from 0,4 cm3 to about 1 cm3.
- or granules from 500 µ about 5 mm.

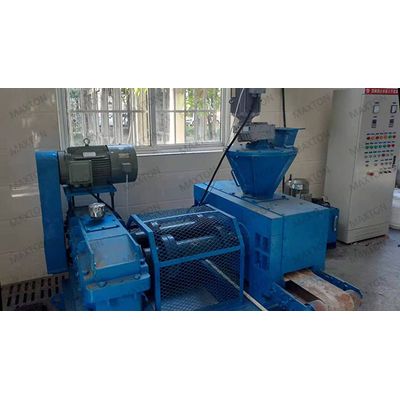

Another model is 300, which is a pilot type roller briquette press.
It is a type of roller briquette machine which has the same structure of those big industrial models. By set up the pilot system, it is quite easy
And the lab scale hot briquette presses which are developed from these types.
Maxton also develops the lab scale mixing, heating, and briquetting type to whom needs a system with easy configuration.
Optional for those roller briquette machines
- Stainless steel 304 L or 316 L for the parts in contact with the product
- All parts in stainless steel 304 L or 316 L
- Deaeration device system of the force feeder with possibly cheek plates – Rolls cooling system
- Sampling device of flakes before granulation
- Automation/regulation and date recording system
- Polished mirror
- Gap sensor
- Force sensor
- GMP version
