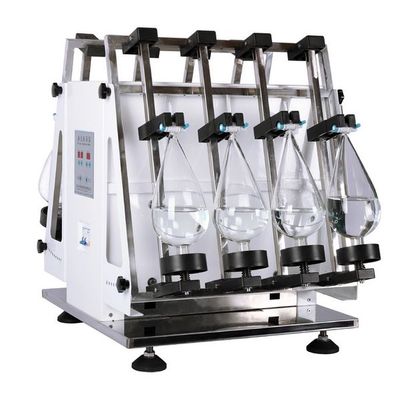

YLK - Model YKD-10 -Lab Separatory Funnel Vertical Shaker for Liquid Liquid Extraction Machine

SHARE

YLK separatory funnel oscillator (vertical oscillator) can be used for a variety of separatory funnels, which can greatly improve work efficiency and reduce work intensity. It can be used for: extraction operation before environmental analysis, extraction of food, natural oils and fats, extraction of pesticide residues, extraction of harmful substances in soil, extraction of water pollution detection, etc.

Most popular related searches
water organic pollutants
laboratory shaker
pesticide residue
water extraction
water pollution
sample holder
environmental analysis
workplace noise
organic pollution
oil-in-water
  1. Sample analysis pre-processing field:  Extraction processes such as oil extraction in water, volatile phenol extraction, anionic surface activity, etc.
  2. Extraction field:  Plant extraction, natural oil extraction, pesticide residue extraction and other extraction processes.
  3. Environmental pretreatment field:  Extraction of organic pollutants in water, extraction of soil harmful substances, extraction of environmental pollutants and other processing processes

  • Model : YKD-08
  • Shake Speed : 100-300 T/Min
  • Shake Range : 40mm
  • Shake Method : Vertical Shake ( tilt angle 0-20° adjustable )
  • Frequency Control : Infinitely variable speed, LCD display
  • Time Set Range : Max.15 minutes ( count down applied )
  • Applied Vessel : 50–2000ml standard pyriform or ball type separating funnel
  • Vessel Number : 4 / 6 / 8 / 10pcs
  • Extraction Efficiency : 95-110%
  • Load Rated : Bilateral symmetry 11kg
  • Power Supply : 220V, 50/60Hz; 100W
  • Dimension(mm) : 535W * 475D * 690H
  • Net Weight (kg) : 120kg
  1. Can choose between tilting and vertical oscillation.
  2. The sample holder can slide freely up and down, it is simple and convenient to place or remove the sample.
  3. Run smoothly when starting or stopping slowly to reduce the impact on the separatory funnel.
  4. Using silent DC motor, working noise is less than 55 decibels.
