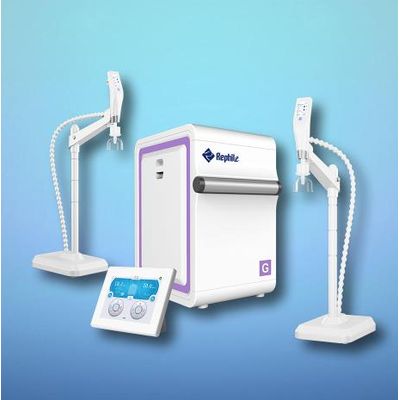

RephiLe - Model Genie G -Lab Water Purification System

Design & Functions

• The system can be linked to multiple dispensers via CAN cable or wireless. “1+N” Mode.
• Exceptionally consistent and predictable high purity Type II water from the best-in-class EDI (electrodeionization) module.
• Stable RO permeability over a wide range of temperatures on account of a temperature stabilization feedback function of the module.
• An environmentally friendly In-line Mercury-free germicidal UV lamp is applied to kill bacteria.
• A bypath automatically sends the RO water to the drain if it does not meet a preset quality standard. The RO drain water is reused to increase the water yield thus it is more environmentally friendly.
• The main system can be tucked away to save precious bench space since it fits well to be wall-mounted, set on the shelf or under the sink.
• Leak protector incorporated can prevent damage from a water leakage by shutting the feed water off in case of unexpected leaking.
• Tank recirculation model guarantees water quality in the tank.
• Fully automated system has RO cleaning, pre-rinsing, flush and lots of other self-maintenance functions. The chlorine cleaning and pH cleaning functions keep the maintenance easier and ensure optimal water quality.

Effective TOC level controlment

• A 185/254 nm dual wavelength UV lamp reduces TOC level in ultrapure water.
• A tank sanitization module is equipped to effectively keep microbial growth at a lower level by LED UV light.
• On-line TOC monitor based on complete oxidation methods.

Easy Operation and Maintenance

• Performance history, alarms and alerts information, maintenance data of consumables as well as key parts are logged and traceable from a simple RFID scan at installation.
• RFID tags ensure perfect placement of consumables and trace their performance.
• Water quality, operation parameters, the status of the system, dispensers, components, and peripheral devices are stored and displayed on the large color touch screen monitor.
• A reassuring volumetric dispensing function, adjustable from 10 mL to 999 L.
• Signature verification for maintenance and service.

Cartridges and Parts

1. EDI module

• Internal EDI module removes the remaining ions, further reduces the content of organic compounds and has a certain capacity to prevent the growth of bacteria from RO water.
• Ion exchange resins are continuously regenerated by an electric field. No hazardous chemical regeneration or costly resin replacement is needed.
• EDI module has a high degree of automation and minimal electricity consumption by using the equivalent of the energy.

2. Cartridge

• Internal P Pack cartridge removes oxidants, organics, particles and scaling ions to prevent them from fouling the RO membranes and the EDI module.
• AC Pack contains special activated carbon to remove organic impurities and free chlorines.
• Ultra purification cartridge is filled with LeFilTM and OrganeFilTM media to remove trace ions and organics.

3. Control console

• 8-inch console controls system and peripheral devices (Such as leak protector and tank sanitization module). All operations can be done on the console by touching the screen.
• The control console can be placed on the bench or inside a drawer for further flexibility and space saving.
• The console screen and dispenser screens are water-drop proof. You can operate the console and dispenser with latex gloves on.
• The system has two level password protection on display menu for safety purposes.

4. Dispenser

• The volumetric function can automatically deliver the water volume you need once it is set up.
• With the adjusting button on a control console or a dispenser, you can dispense water at the flow rate you need up to 2 liters per minute.
• A dispenser handle can be set on the dispenser stand, on the main system, or even hanging onto other places to free up maximum bench space.

5. Final Filter

• A wide range of final filters (optional) is applicable to ensure ultrapure water without particles, bacteria or pyrogen.

6. Level sensor

• The tank integrated continuous level sensor measures water level within the tank and manages the system to start or stop producing water automatically based on requirements.
• Water level and quality inside the tank can be viewed from the control console.
