Labeo Technologies - High-Frequency Acoustic Stimulator for Precise Acoustic Stimulus Delivery
The High-Frequency Acoustic Stimulator is an advanced system designed for delivering controlled acoustic stimuli across both audible and ultrasonic ranges, up to 90 kHz. Available in single or dual-channel configurations, with optional integrated waveform generator, this device can deliver sound levels up to 90 dB SPL at 40 kHz. Its design supports user-specific analog waveform generators or standalone operation with built-in options. The hardware enables precise synchronization via TTL signal inputs, allowing deterministic stimulus delivery crucial for complex experiments. With comprehensive software, included in models with a built-in generator, users can design and automate stimuli, manage timing protocols, and execute frequency sweeps. It's compatible with LabeoTech's Behavioral Rig, VR Setup, and OiS200 Imaging System. Applications include tonotopy studies, exploring ultrasonic vocalizations in auditory processing, and implementing closed-loop vocalization experiments. Caution is advised as it emits high-frequency sounds that can cause hearing damage with prolonged exposure.Most popular related searches

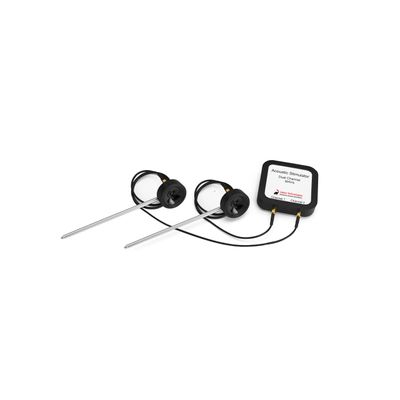

The High-Frequency Acoustic Stimulator is a versatile and precise system designed to deliver controlled acoustic stimuli in the audible to ultrasonic range, up to 90 kHz. It is offered in four configurations:
-
Single-channel (no generator)
-
Dual-channel (no generator)
-
Single-channel with integrated waveform generator
-
Dual-channel with integrated waveform generator
When purchased without the integrated generator, the user simply connects their own analog waveform generator to the analog input ports (ANA IN1 / ANA IN2). The device then amplifies this signal and drives the ultrasonic emitters. When equipped with the built-in generator, users can create, edit, and manage acoustic stimuli entirely through the included software.
- Sound level: 90 dB SPL at 40 kHz (25 cm)
- Maximum frequency: 90 kHz
- Number of channels: 1 or 2
- Emitter dimensions: Ø 47 mm × 29 mm height
- Mounting: 6.35 mm rod holder, compatible with Labeo Magnetic Stand
- Connectivity: Trigger IN, Trigger OUT, ANA IN1, ANA IN2
