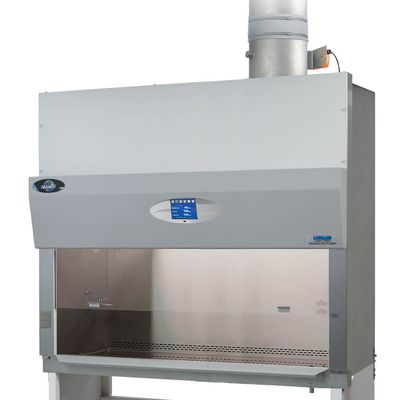

NuAire - Model LabGard Class II Type B1-NU-427 -Biosafety Cabinet
FromNuAire, Inc.
The NU-427 preserves the Class II Type B1 cabinet’s traditional role of serving as an intermediate option between recirculating and total exhaust cabinets but gives this design a state-of-the-art control system.
Most popular related searches
biological safety cabinet
class II biological safety cabinet
class II biological safety
biological safety
pressure switch
frame filter
mechanical switch
safety cabinet
blower
control cabinet
The NU-427 preserves the Class II Type B1 cabinet’s traditional role of serving as an intermediate option between recirculating and total exhaust cabinets but with a control system fit for modern applications. By exhausting air from the entire length of the back half of the work zone through slots in the back wall, this design not only allows users to continue the recommended practice of working “clean to dirty” and deep inside the work zone but also leaves the dished work surface intact to retain spills. This exhaust is powered by an external facility blower that is interlocked with the cabinet’s own motor through a redundant system to provide two layers of protection that minimize the risk of blowing air out of the cabinet should the external blower fail: cabinet exhaust is monitored by not only a mechanical pressure switch but also a differential velocity pressure-flow grid. A touch screen displays the readings from both this flow grid and a downflow sensor in the work zone at all times for the cabinet operator. Standard models meet the requirements of the respected NSF/ANSI 49 standard for biosafety cabinets.
TouchLink Control System
The airflow dynamics in an externally exhausted type B2 cabinet need to work in constant harmony. The TouchLink control system displays inflow velocity, downflow velocity, and exhaust volume on a single, easy to read front screen. The digital control system interlocks the downflow blower with the external exhaust to shut down the motor if an exhaust failure occurs—a safeguard that is further backed up by a mechanical pressure switch.
- Airflow Control Options: Cabinet Off Override, Delay Off Exhaust Airflow, Exhaust Airflow Loss Override
- Blower Contact Wires: N/A
- Closure Panels: Optional Rear Closure Panels for Seismic Brackets
- Cord Pass Through: Standard on Right Side; Optional on Left Side
- Gas Supply Interlock with Blower: N/A
- Glass Sidewalls: N/A
- IV Bar with 6 Hooks: Optional
- Motorized Base Stand: Optional as Separate Accessory
- Motorized Window: N/A
- Other Built-in Supply Filter Option(s): Optional 99.995% Efficient Metal-Frame Filter
- Outlet(s): One, Left Front Faring
- Plumbing: Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper
- Remote Service Valves: Maximum of Three Each Side Wall Optional
- Seismic Brackets or Studs: Optional Rear or Floor Mount Seismic Brackets
- Service Couplings (3/8-inch NPT): One Coupling on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional
- Service Valves (3/8-inch NPT): One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional
- Side Panels: Required with Plumbing out Bottom, Top or Back
- Smooth Interior: N/A
- Ultraviolet (UV) Light: Optional
- Window Edge Protector: Optional
