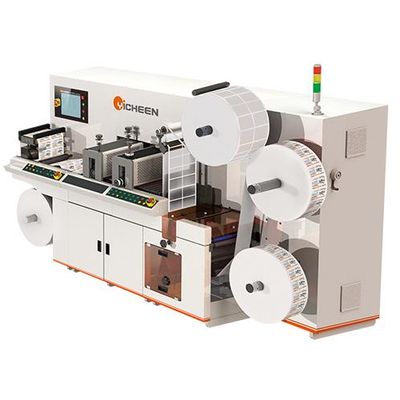

Yicheen - Lable Converting and Finishing System
Running operated by full rotary die cut method or intermittent die cut method. Die is easy in change, save a lot of time in die mold adjustment. Micro adjustable for the depth of die, able to dotted line cut/full cut/kiss cut procession. Servo driver and HMI control system, easy in operation, to upgrade the speed and precision control. Sensor detector and alert for broken material to reduce material lost. Optional module for satisfying customized demands.
Optional Mechanism :
EPC, Laminating, Die Cutting {Front & Back Die Cut), Liner Razor, Varnishing, Slitting/Cutting Sheet
Application :
IML(in mold label), Self-adhesive Label, Sticker, Foam, IPO, Single/Double sided adhesive. Post-press finishing material...etc
- Intermittent rotary die cut speed (max.) 300cycle/min(+/-60rn/min)
- Full rotary die cut speed (max.): 100 m/min
- Die cut precision: ±0.15mm
- Label die cut precision: ±0.25mm
- Max. die cut size: L380mmxW350mm
- Material width: 10mm-350mm
- Unwind dia. (max.): 700mm
- Rewind dia. (max.): 700mm
- Standard magnetic cylinder: 120 gear tooth
- Repeat die cut length: 20mm-250mm
Specifications are subject to change without notice for design improvement The specification can be designed by customers demand.
