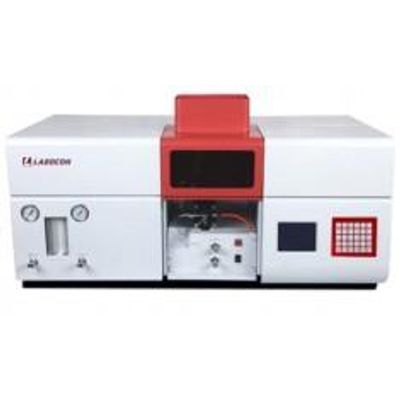

Labocon - Model LAAS-101 -Atomic Absorption Spectrophotometer
Labocon Atomic Absorption Spectrophotometer LAAS-100 Series spectrophotometer, which offer superior base line stability of 0.002A/30min with advance optical system to ensure simple and reliable solution for trace elemental analysis.
Most popular related searches
atomic absorption spectrophotometer
nitrous oxide
trace elemental analysis
cooling water system
graphite tube furnace
spectrophotometer
safety system
gas controller
gas control
elemental analysis
- Gas Control
- Software controlled quick gas conversion and safetyprotection device used to analyse airacetylene flame and nitrous oxide-acetylene flame
- Spray Chamber Metal Glass Spray
- Burner Corrosion resistant titanium burners available for both air/acetylene and nitrous-oxide acetylene
- Safety System
- Safety interlock mechanism that monitors the burner type, burner fitted, gas pressures. Flame on/off sensors; Power failure automatic shutdown. Liquid trap system, pressure relief plug and flame shield to protect from UV radiation
- Double beam
- Automatic compensation of light source and wavelength drift caused by temperature variation and electronic circuit drift
- Eliminates the need for pre-heating of cathode lamp to analyse the sample quickly
- Gas path system equipped with precision pressure and current stabilizing devices to obtain stable flame at low noise
- A very fine light beam passes through flame providing a precise analytical test with low characteristic concentration
- Adopts total reflection system to eliminate color difference
- Multi-functional analysis mode for flame absorption, flame emission, graphite furnace atomic absorption and hydride generation
- Quick gas conversion and safety protection device used to analyse air-acetylene flame and nitrous oxide-acetylene flame
Labocon Atomic Absorption Spectrophotometer LAAS 100 series is widely used in analytical chemistry protocols, applications such as food and drug safety, clinical diagnostics, petrochemical, agricultural, environmental monitoring.
- RS232 software
- Graphite tubes
- Graphite furnace system
- Hydride generator
- Nitrous oxide generator
- Nitrous oxide regulator
- Acetylene regulator
- Recirculating cooling water system
- Printer
- Wavelength Range: 190-900 nm
- Wavelength Accuracy: ≤±0.5 nm
- Wavelength Repeatability: ≤0.3 nm (single direction)
- Spectral Bandwidth: 0.2, 0.4, 0.7, 1.4, 2.4, 5.0 nm
- Temperature Range: None
- Working Humidity: None
- Resolution: <40%
- Baseline Stability: ≤0.004Abs/30min
- Characteristic Concentration Limit: Cu: ≤0.04g/ml/1%
- Detection Limit: Cu: 0.008g/ml
- Background Calibration: Greater than 30 times
- Overall Dimension: 1220x770x730 mm
- Weight: 160 kg
- Power: 660 W
- Power Supply: 220V 50Hz
- Catalog No.: 9523126164
