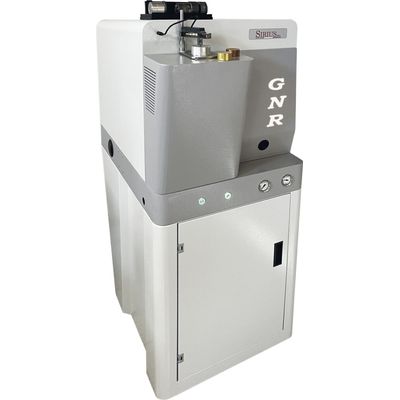

SiriusModel S6 500 -Laboratory CMOS Based Optical Emission Spectrometer

SHARE

SIRIUS 500 is the new optical emission spectrometer designed and manufactured by GNR. Based on CMOS technology and EOS Software, this brand-new metal analyzer covers the complete spectrum of elements in ferrous and not ferrous materials; it is powerful, fast, easy-to-use spectrometer equipped with specific application packages for all requirements. S6 SIRIUS 500, adopting CMOS with high sensibility to ensure the best luminosity together with a wavelength of 119nm to 850nm, allows to analyze oxygen in Cu pure matrix or gaseous elements (N, O, H) into Ti matrix or N in Co matrix and Ni matrix. S6 SIRIUS 500 is offered to the market with Argon purged system fully suitable not only for general purpose applications but for also more demanding and heavy-duty applications in order to better satisfy customer needs and market compliance.

Most popular related searches
  • Iron & Ssteel and its alloys
  • Low Nitrogen in Fe Matrix
  • Soluble and Insoluble content in Low Alloy Steel
  • Aluminum and its alloys
  • Sodium / Lithium in Al Matrix
  • Copper and its alloys
  • Oxygen in Copper pure matrix
  • Nickel and its alloys
  • N in Co and Ni matrix
  • Cobalt and its alloys
  • Magnesium and its alloys
  • Tin and its alloys
  • Lead and its alloys
  • Titanium and its alloys
  • Gaseous elements (N, O, H) into Ti matrix

Optical System

  • Optical Air System: Multi High Resolution CMOS system
  • High luminosity holographic grating
  • Argon purged optical chamber with Proprietary Low Consumption Argon device

Other Information

  • Power Supply: 110/240 V AC, 50 / 60 Hz
  • Dimensions: W 54 x D 1275 x H 79cm
  • Weight: 140 Kg
Software Informations

EOS® Software, operating in Windows environment, is the GNR proprietary SW very functional and easy to use.
Operator can use all the spectrometer’s functions in a flexible way and cover all the requirements.
Some of the most important functions are listed below:

  • Analysis
  • Controlled Standardization
  • Printing of the Certificates (customizable)
  • Determination of alloys in accordance to international norms (UNI, ASTM, DIN, …)
  • Network linking and remote control
  • Data Export
  • Instrument and Spark Check
  • Multi-User Access
  • Software Remote Update
