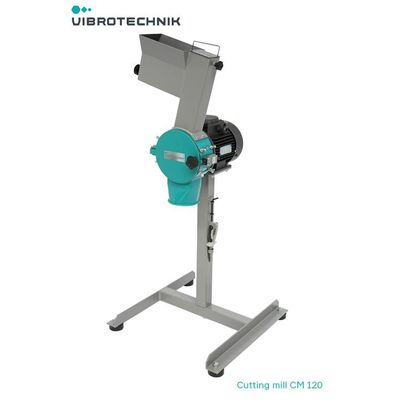

Vibrotechnik - Model CM 120 -Laboratory Cutting Mills
FromVibrotechnik LLC
The CM 120 cutting mill is laboratory-class equipment designed for comminuting small batches of material with grain size up to 20 mm.
The CM 120 effectively comminutes fiber materials by crushing them with a plunger through a vertical shaft. See more: http://vibrotechnik.com/Most popular related searches
cutting mill
laboratory milling
laboratory mill
laboratory milling system
laboratory equipment design
particle sizing
laboratory equipment
crushing mill
material crushing
crushing equipment
Characteristics CM 120
- Loading door dimensions 60х58/80х60 (mm)
- Rotor dimensions (Length x Diameter) 80 х 120 (mm)
- Maximum size of comminuted material 20 (mm)
- Product particle size 90%<0,5 (mm)
- Rotor rotational speed 1,500 (rpm)
- Electric motor power 1,5/1,1 (kW)
- 50 Hz supply voltage 220/380 (V)
- Overall dimensions (Length x Width x Height) 850х550х1185 (mm)
- Weight 46 (kg)
- Blade material – tool steel - AISI 01, DIN 150Cr14, AISI 5135
