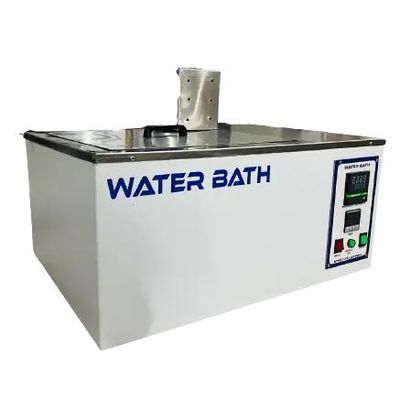

Effective - Model ELI-HWB -Laboratory Digital Water Bath
A laboratory water bath is a constant temperature equipment which is used for providing heat to the devices which need heat. It is used for keeping water at a constant temperature for the incubation of samples in a laboratory.
Working Principle – The sensor in a digital water bath converts the temperature of water to a resistance value, which is then amplified and compared by an integrated amplifier. After that, it outputs a control signal that effectively regulates the electric heating tube’s average heating power and keeps the water at a consistent temperature.
However, a Laboratory water bath is an excellent option for balanced high-temperature heating.
Laboratory water baths are used for heating samples. Heating flammable chemicals, maintaining cell lines and that could catch fire if left near an open flame are two applications of a Laboratory water bath. A laboratory water bath comprises a stainless-steel chamber containing the water and samples, a heating unit and a control interface. Moreover, Additional functionality is provided by other types of water baths, such as circulating water baths are used for the maintenance of a more consistent temperature and shaking water baths are used to keep the samples moving while they are heated.
There is an inbuilt anti-corrosion circulating pump in the digital water bath which provides a constant heat source for the rotary evaporator and glass reactor. The superior cold rolled steel sheet spraying plastics are used to make the shell of the Lamphun GY series circulating water bath, while the electrically heated tube functions in accelerating the heating of the conduction oil.
Moreover, the liner of the water bath digital is made of imported stainless steel.
However, Laboratory water baths manufactured by Effective Lab India are protected by heat insulation cotton. Effective Lab India uses a smart PID constant temperature heating device and a double-screen LED temperature controller. This temperature controller is helpful for the accuracy of temperature control and controllable output flow.
- Extremely precise PT-100 temperature control sensor
- There is an integrated calibration feature that uses the master PID controller as a reference.
- Set Value (SV) and Process Value (PV) of the PID temperature controller, which is equipped with an advanced digital microprocessor, are visible on the display screen.
- There is an integrated auto-tuning feature installed.
- A speed regulator is fitted to regulate the speed of the stirrer.
- The machine has been equipped with rapid heaters to guarantee even and consistent heating as well as a stable temperature within the chamber.
- An integrated water drain system is included in the package as well.
- Equipped with a stirrer motor to ensure temperature uniformity and precise sample stirring within the chamber
- For accurate testing, a constant temperature is maintained throughout the chamber.
- Extremely precise PT-100 temperature control sensor
- There is an integrated calibration feature that uses the master PID controller as a reference.
- Set Value (SV) and Process Value (PV) of the PID temperature controller, which is equipped with an advanced digital microprocessor, are visible on the display screen.
- There is an integrated auto-tuning feature installed.
- A speed regulator is fitted to regulate the speed of the stirrer.
- The machine has been equipped with rapid heaters to guarantee even and consistent heating as well as a stable temperature within the chamber.
- An integrated water drain system is included in the package as well.
- Equipped with a stirrer motor to ensure temperature uniformity and precise sample stirring within the chamber
- For accurate testing, a constant temperature is maintained throughout the chamber.
