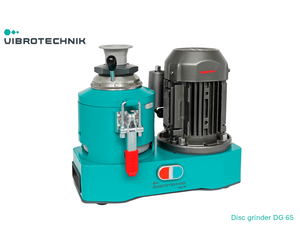

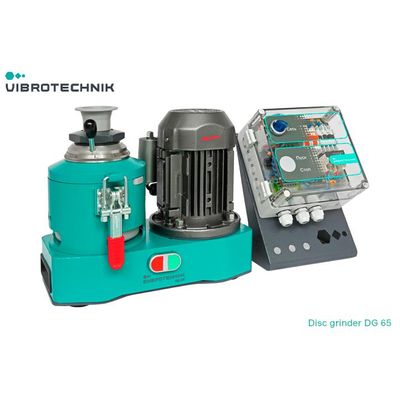

Vibrotechnik - Model DG 65 -Laboratory Disc Grinder
FromVibrotechnik LLC
The Disc grinder DG 65 is designed for comminution of small samples weighing up to 1.0 kg for analytical studies with strict requirements relating to sample purity: the sample is not contaminated by working parts of the grinder. See more: http://vibrotechnik.com/Most popular related searches
laboratory grinding equipment
particle sizing
laboratory grinding
grinding equipment
laboratory grinder
laboratory equipment
Characteristics DG 65
- Disc diameter - 65 (mm)
- Maximum initial particle size - 3 (mm)*
- Average crushed product particle size at minimum aperture - 0,05 (mm)
- Maximum hardness of comminuted material - 8 units (Mohs units)
- Maximum output - 5 (kg/hour)
- Electric motor power -0,37 (kW)
- 50 Hz supply voltage -220 (V)
- Overall dimensions (Length x Width x Height) - 350х225х300 (mm)
- Weight -21 (kg)
- Disc material - SiC
*The maximum allowable size of the initial material depends on its physical properties.
