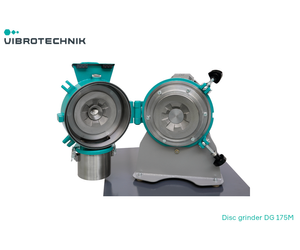

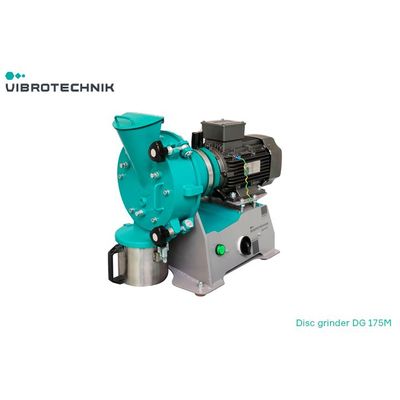

Vibrotechnik - Model DG 175M -Laboratory Disc Grinder

Characteristics DG  175М

• Disc diameter - 175 (mm)
• Maximum initial particle size - 4 (mm)*
• Average crushed product particle size at minimum aperture - 0,071 (mm)
• Maximum hardness of comminuted material - 8 units** (Mohs units)
• Maximum output - 50 (kg/hour)
• Electric motor power - 2,2 (kW)
• 50 Hz supply voltage - 380 (V)
• Overall dimensions (Length x Width x Height) - 625х375х485 (mm)
• Weight – 83 (kg)
• Disc material - GJN-HV600(XCr14) / 20Х13 with tungsten carbide inserts

** The maximum allowable size of the initial material depends on its physical properties.

**If discs with tungsten carbide inserts are used.
