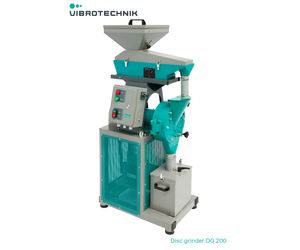

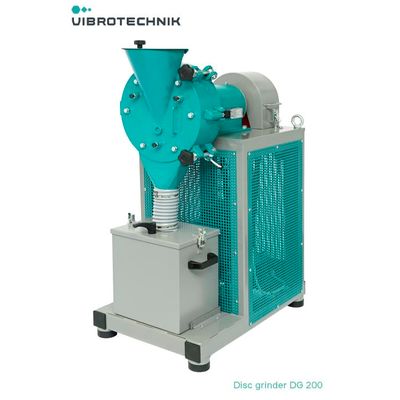

Vibrotechnik - Model DG 200 -Laboratory Disc Grinder
FromVibrotechnik LLC
The Disc grinder DG 200 is a more powerful model of the laboratory-class equipment. It can be used for comminution of small samples weighing up to 3 kg, as well as for continuous comminution, by outfitting it with 1.8L or 10L receiving containers, as well as Feeders PG 1 or PG 2. See more: http://vibrotechnik.com/Most popular related searches
laboratory grinding equipment
tungsten carbide
particle sizing
laboratory grinding
grinding equipment
laboratory equipment
laboratory grinder
Characteristics DG 200
- Disc diameter - 200 (mm)
- Maximum initial particle size - 4 (mm)*
- Average crushed product particle size at minimum aperture -0,1 (mm)
- Maximum hardness of comminuted material - 8 units** (Mohs units)
- Maximum output - 150 (kg/hour)
- Electric motor power -2,2 (kW)
- 50 Hz supply voltage - 380 (V)
- Overall dimensions (Length x Width x Height) - 630х410х925 (mm)
- Weight - 135 (kg)
- Disc material - GJN-HV600(XCr14) / UNS J91109 with tungsten carbide inserts
** The maximum allowable size of the initial material depends on its physical properties.
**If discs with tungsten carbide inserts are used.
