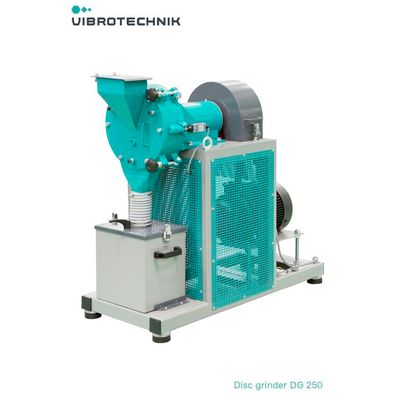

Vibrotechnik - Model DG 250 -Laboratory Disc Grinder
FromVibrotechnik LLC
The Disc grinder DG 250 is high-power equipment designed for busy laboratories or small production facilities. ee more: http://vibrotechnik.com/Most popular related searches
laboratory grinding equipment
tungsten carbide
laboratory grinding
particle sizing
grinding equipment
laboratory grinder
laboratory equipment
laboratory productivity
laboratory product
Characteristics DG 250
- Disc diameter - 250 (mm)
- Width, Area of parallel zone - 4 (mm)*
- Average crushed product particle size at minimum aperture 0,1 (mm)
- Maximum hardness of comminuted material - 7 units (Mohs units)
- Maximum output - 300 (kg/hour)
- Electric motor power - 4 (kW)
- 50 Hz supply voltage - 380 (V)
- Overall dimensions (Length x Width x Height) 930х410х935 (mm)
- Weight - 160 (kg)
- Disc material - GJN-HV600(XCr14)
** The maximum allowable size of the initial material depends on its physical properties.
**If discs with tungsten carbide inserts are used.
