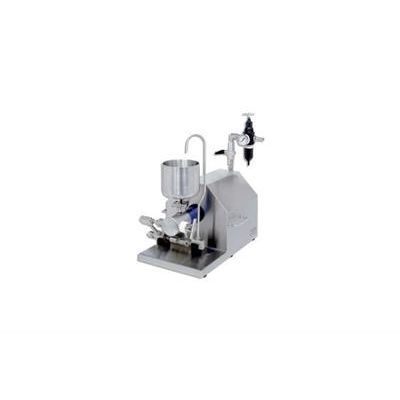

Microfluidizer - Model HC Series -Laboratory Homogenizers
The lightweight, easy-to-use HC air-driven homogenizers are suitable for batch and continuous flow processing. The series produces up to 8,000 psi with standard lab air, for premium results at an affordable cost. HC machines are ideal for precisely controlled, higher volume applications, such as mammalian cell disruption and low shear emulsions.
Most popular related searches
laboratory homogenization
laboratory homogenizer
benchtop laboratory
size reduction
laboratory air
pressure transducer
pressure gauge
particle size reduction
portable near infrared instrument
benchtop homogenizer
The HC pneumatic homogenizers combine high flow with high-pressure, fixed-geometry homogenizer modules that impart high shear rates to product formulations. Because every milliliter of your product experiences the same processing, the results include uniform particle and droplet size reduction, deagglomeration and high-yield cell disruption.
STANDARD FEATURES:
- Small footprint for bench or under-hood use
- Flow rates to 2,000 ml/min (HC-2000), 950 ml/min (HC-5000), 1,000 ml/min (HC-8000)
- In-line cleaning of high-pressure tubing
- Materials of construction for wetted surfaces include: 315 stainless steel, Hastelloy C®, Kynar®, PEEK, UHMWPE, Teflon®, Ceramic and Viton®
- Pressure gauge (non-sanitary type)
OPTIONAL FEATURES:
- Cooling coil
- Sanitary flush diaphragm pressure transducer with microprocessor-based, digital display indicator
- Autoclavable air motor
- 400 ml manual pressure feed reservoir
- Pressurized feed tank
- Selection of homogenizer modules for normal or high-viscosity processing
The HC portable benchtop laboratory homogenizers:
- Operate at pressures to 2,000 psi (HC-2000), 5,000 psi (HC-5000), 8,000 psi (HC-8000)
- Handle sample sizes of 100 ml (HC-2000/HC-5000) or 250 ml (HC-8000) to continuous processing up to 120 liter/hour
- Contain a unique, wear-resistant homogenizer module — no moving parts
- Feature a durable plunger seal that offers a wide compatibility range and extended seal life
- Are air driven and explosion-proof
- Produce a maximum process steam temperature of 165˚F (75˚C)
