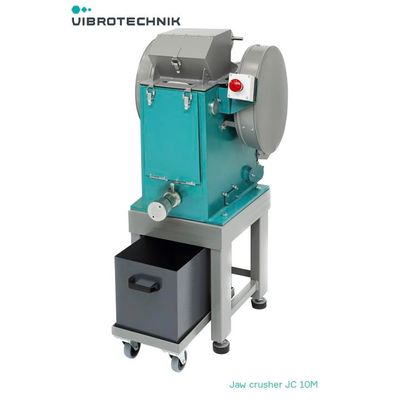

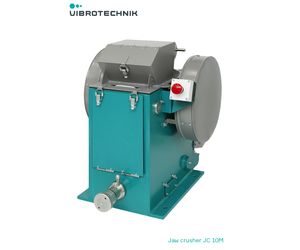

Vibrotechnik - Model JC 10M -Laboratory Jaw Crusher

Jaw crusher JC 10М is a more powerful model of the laboratory-class equipment, used for continuous crushing of material in small and medium-sized facilities. When it is equipped with a support stand with a collecting container, it can be used for intermittent crushing of samples. See more: http://vibrotechnik.com/

Most popular related searches

jaw crusher

laboratory jaw crusher

particle sizing

containment tank

laboratory equipment

laboratory milling system

Characteristics JC 10M

Loading door dimensions - 100х200 (mm)
Maximum initial material grain size – 70 (mm)
Discharge slot adjustment range - 3-25 (mm)
Average product particle size at minimum aperture - 90%<2,5 (mm)
Maximum output - 500 (kg/hour)
Collecting container / tank volume 20 (L)
Electric motor power 2,2 (kW)
50 Hz supply voltage - 380 (V)
Overall dimensions (Length x Width x Height / with stand) - 710х490х620 / 1090 (mm)
Weight / with stand -285 / 325 (kg)
Jaw material – iron / steel / wolfram carbide - GJN-HV600 (XCr14) / UNS J91109
