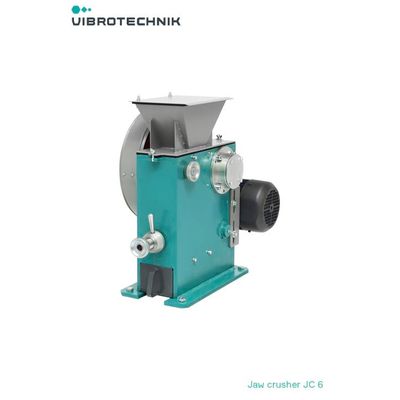

Vibrotechnik - Model JC 6 -Laboratory Jaw Crusher
FromVibrotechnik LLC
The jaw crushers are designed to crush brittle bulk materials of various strength and hardness.
In the jaw crushers, the material particles are broken down by the compressive and shear strains between the fixed and moving jaws.
The grain size of the crushed material is determined by the gap between the jaws in the lower part (the discharge slot) and the physical properties of the material.
See more: http://vibrotechnik.com/Most popular related searches
jaw crusher
laboratory jaw crusher
particle sizing
containment tank
laboratory milling system
crushing mill
laboratory crusher
laboratory milling
laboratory mill
crushing equipment
Characteristics JC 6
- Loading door dimensions - 60х100 (mm)
- Maximum initial material grain size - 50 (mm)
- Discharge slot adjustment range - 2-25 (mm)
- Average product particle size at minimum aperture - 90%<2 (mm)
- Maximum output - 200 (kg/hour)
- Collecting container / tank volume - 2,1 / 1,6 (L)
- Electric motor power - 1,1 (kW)
- 50 Hz supply voltage - 380 (V)
- Overall dimensions (Length x Width x Height / with stand) - 640х340х600 / 1090 (mm)
- Weight / with stand - 130 / 160 (kg)
- Jaw material – iron / steel / wolfram carbide - GJN-HV600 (XCr14) / UNS J91109 / WC
