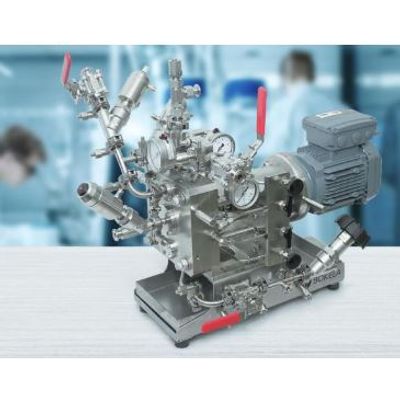

Bokela - Model BoCrossTest -Laboratory Test Device

BoCrossTest is a laboratory-scale dynamic crossflow filter. Like BoCross Dynamic and BoCross MicroScreen, it operates on the principle of dynamic crossflow filtration and uses the shear stress effect to prevent solid deposits on the filter medium.

With small sample quantities, BoCrossTest enables the determination of the filtration behavior under crossflow conditions. Various suspensions and filter media (polymer membranes, metal mesh, ceramic membranes) can be investigated. BoCrossTest can be operated both, discontinuously and continuously.

BoCrossTest allows small sample quantities to be analyzed for filtration behavior under crossflow conditions - both for general crossflow filtration such as filtration in tubular membranes but especially for a dynamic crossflow filtration at higher shear rates and higher particle loadings.

For various suspensions and filter media (polymeric membranes, metal mesh, ceramic membranes), the possibilities of crossflow filtration can be determined regarding

• thickening
• washing
• sieving

BoCrossTest supplies the filtration parameters important for a filter layout, such as

• pressure
• rotor speed
• range of concentration
• flow rate

Experiments with BoCrossTest

Are you no longer achieving your target values? First test your parameters with your laboratory equipment and then translate the results to your filter after a successful test series.

BoCrossTest is characterized by the following features:

• portable laboratory filter with small dimensions (e.g. for use in fume cupboards)
• only small sample volume of 1 to 40 l required (depending on test scope)
• use of different filter media
• fast change of filter media
• easy handling
