Vibrotechnik - Model S 20/50T - ...

Vibrotechnik - Model S 20/50T -Laboratory Test Sieve

Test sieves correspond to the accuracy of mesh sizes and perforated plate holes to international standards ISO 3310-1, ISO 3310-2 and provide high reproducibility of sieving. See more: http://vibrotechnik.com/catalog/sieving-equipment/laboratory-test-sieves/sieve-s-20-50t-diameter-200-mm-height-50-mm/

Most popular related searches

laboratory test sieve

laboratory testing

laboratory sieve

laboratory sieve equipment

laboratory testing system

laboratory equipment

CHARACTERISTICS

Inner frame diameter 200 mm
Overall dimensions: Ø 212 mm, Height 70 mm
Mesh size: 0,02 – 10,0 mm
Size of apertures in perforated plate:

round holes —1,0 — 125,0 mm

square holes —4,0 – 125,0 mm

Maximum weight of sieve with mesh 0,5 kg
Maximum sample weight for sieve with mesh 0,2 kg
Maximum sample weight for sieve with perforated plate 0,5 kg

Vibrotechnik - Model S 20/50T -Laboratory Test Sieve

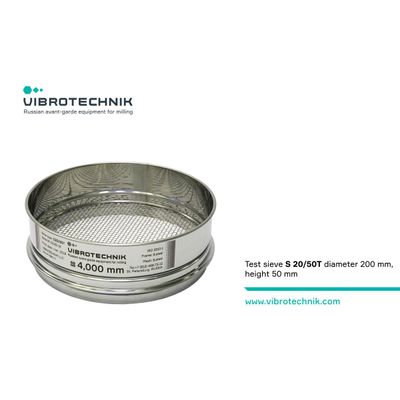

Test sieve S 20/50T diameter 200 mm, height 50 mm
