Vibrotechnik - Model S 40/140T -Laboratory Test Sieve

Test sieves correspond to the accuracy of mesh sizes and perforated plate holes to international standards ISO 3310-1, ISO 3310-2 and provide high reproducibility of sieving. The sieves can be equipped with stainless steel mesh (cell sizes from 20 μm to 10 mm), or with perforated plate with round and square holes (from 1 mm to 125 mm), corresponding to ISO 3310. See more: http://vibrotechnik.com/catalog/sieving-equipment/laboratory-test-sieves/sieve-s-40-140t-diameter-400-mm-height-140-mm/

Most popular related searches

laboratory test sieve

laboratory testing

laboratory sieve

laboratory sieve equipment

laboratory testing system

laboratory equipment

CHARACTERISTICS

Inner frame diameter 400 mm
Overall dimensions: Ø440 mm, Height 150 mm
Mesh size 1,0 – 10,0 mm
Size of apertures in perforated plate:

round holes — 1,0 — 125,0

square holes — 4,0 – 125,0 mm

Maximum weight of sieve with mesh 4,5 kg
Maximum sample weight for sieve with mesh 1,0 kg
Maximum sample weight for sieve with perforated plate 2,0 kg

Vibrotechnik - Model S 40/140T -Laboratory Test Sieve

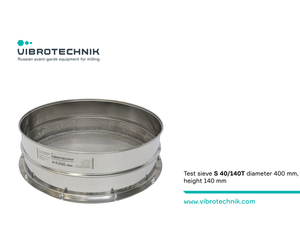

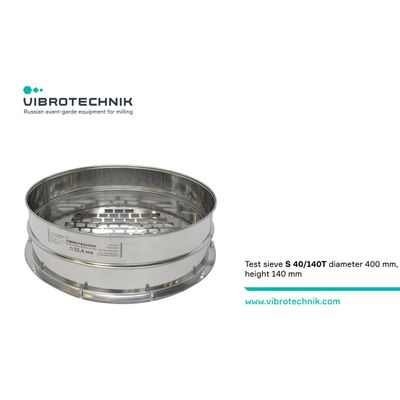

Test sieve S 40/140T diameter 400 mm, height 140 mm
