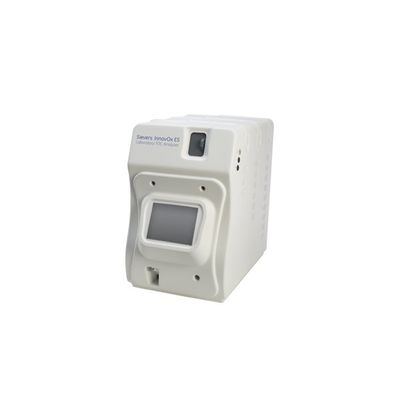

Sievers InnovOx - Model ES -Laboratory TOC Analyzer
Robust sample handling capabilities designed for challenging applications. Sievers InnovOx ES Laboratory Total Organic Carbon (TOC) Analyzers offer a dynamic operating range of 50 ppb to 50,000 ppm. Its patented Supercritical Water Oxidation technique allows for superior TOC recovery and accuracy. The Sievers InnovOx ES Lab offers a variety of measurement modes including TOC and Non-Purgeable Organic Carbon (NPOC). The InnovOx ES Lab provides versatile analysis options such as multiple runs on the same sample, auto calibration range selection, and integration with the Sievers Autosampler.
Most popular related searches
TOC analyzer
total organic carbon analyzer
laboratory TOC analyzer
supercritical water oxidation
non-purgeable organic carbons
laboratory total organic carbon
total organic carbon
wastewater plant optimization
EPA method
industrial monitoring system
Learn more about the robust Sievers InnovOx ES Lab
The analyzers are compliant with US EPA Method 415.1, US EPA Method 415.3, US EPA Method 9060A, CEN Method DIN EN 1484, ISO 8245, and ASTM D5173.
Robust sample handling
- Wide dynamic range up to 50,000 ppm TOC
- Autosampler with stirring and rinse station options for high volume laboratory applications
- Patented Supercritical Water Oxidation for superior TOC recovery and high reliability
- Reliable NDIR detection technology with no moving parts
- Straightforward operation
- Versatile measurement modes include TOC (TC-IC) or NPOC
- COD/BOD reporting
- Handles tough TOC samples, like cellulose and brine
Applications
- Biological wastewater plant optimization
- Wastewater monitoring
- High salt and brine monitoring
- Industrial monitoring
Operating Specifications*
- Analysis Modes NPOC, TOC, (TC-IC), TC, IC
- Range 0.05 to 50,000 ppm TOC
- Precision RSD ≤3% of reading at >5 ppm NPOC or TOC
- Accuracy Greater of ±3% or ±.25 ppm, 1 to 100 ppm, NPOC or TOC
- Linearity R2 ≥ 0.995, measured as NPOC
- LOD <50ppb
- TOC Calibration Stability Up to 6 months
- Analysis Time 2.6 to 8.3 minutes
- Particle Diameters in Sample ≤800 µm diameter
- Sample Temperature 10-60 °C (41-140 °F)
- Ambient Temperature Range 10 to 40 °C (50-104 °F)
- Sampling Ambient pressure, 0.08 to 2.82 mL sample volume per analysis
Analyzer Specifications
- Sample Capacity Up to 120 with optional Autosampler** (or single standard vial port)
- Outputs Ethernet Port (1); USB Ports (3)
- Display Color LCD w/touch-screen
- Power 100 – 240 ± 10% VAC, 50 – 60 Hz, 400 VA
- Installation/Overvoltage Category II
- Dimensions H: 52.05 cm (20.5 in.); W: 32.26 cm (12.7 in.); D:58.42 cm (23.0 in)
- Dimensions (Autosampler) H: 52.2 cm (20.5 in.); W: 31.1 cm (12.25 in.); D: 53.3 cm (21.0 in.)
- Weight 22.41 kg (49.4 lb); 14.1 kg (31.1 lb) for optional Autosampler
- Safety Certifications CE, ETL listed. Conforms to UL Std. 61010-1. Certified to CSA C22.2 NO. 61010-1
Environment
- Maximum Relative Humidity Up to 95%, non-condensing
- Normal Operating Indoor use only. Keep instrument and reagents out of direct sunlight.
- Maximum Altitude 3,000 m (9,800 ft)
- Pollution Degree 2

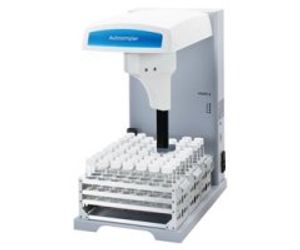

- Autosampler: for high-volume laboratory applications
- Air filter: used to purify ambient air and pressurize it sufficiently for use as a sparge and carrier gas
