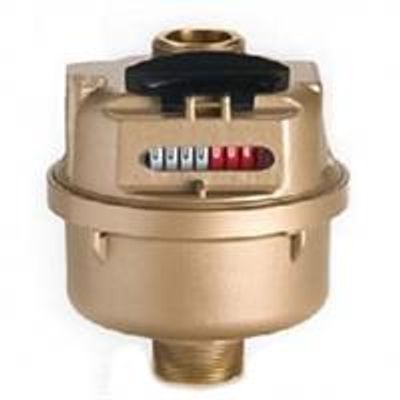

Laison - Model PD-LFC -Volumetric Type Mechanical Water Meter

Characteristics:

1. All the components are produced with high resistance and quality materials, technical plastics and stainless steel parts;
   Cold water meter under current standard for lower than 30ºC(T30), but NWM PD-LFC (B) can be used safely in water temperature up to 50ºC(T50);
2. The rollers are protected by special liquid don`t touch with the water which ensures the clear reading in any operating conditions;
3. The mechanical transmission movement with the maximum reliability;
4. Suitable for any position installation;
5. Non Return Valve to avoid the reserve flow Rate;
6. Pulse output pre-equipped AS OPTION, also Pulse output AS OPTION.

DETAIL AS:

• Design of the Pulse Output Vision;
• The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
• Electric Data: Vmax=24AC/DC, Imax=0,01A
• Capacity of the Pulse output or Pulse output pre-equipped
