The standard sheet width and other sizes are as above. Lamella length (LA): It can be made in every size. In projects H: It is given as vertical height. Usually, the vertical (H) height is between 1000-1200 mm. Lamella Slope (SA): It ranges between 55 to 60 degrees. In most cases, 60 degrees is recommended.
Most popular related searches
wastewater treatment plant
clarifier basin
tube settler
wastewater treatment
lamella plate clarifier
water treatment plant
wastewater plant
lamella settler
settler
clarifier system

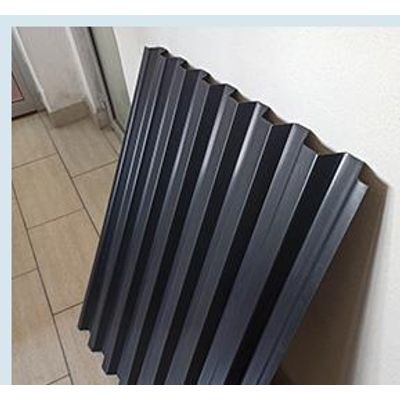

- Sections of lamella plates used in clarifier basin of water and wastewater treatment plants are given above.
- Lamella Slope (SA): It ranges between 55 to 60 degrees. In most cases, 60 degrees is recommended.
- Standard thickness (Th): The standard thickness for PVC is 1 mm while for PP it is 0.8 mm. Desired thickness can be produced upon request.
- Standard color : For PVC, Black color is produced. For PP, its translucent white. Other desired colors can be produced upon request.
- Operating temperature : 50 degrees for PVC. 60 degrees for translucent PP.
- We can be the solution;Please feel free to request technical support on Lamella related issues.
- As its our full time job to make the lamella system, we will definitely answer all the questions which are in your mind and we will suggest you a better solution.
