Lamtec - Model LT1 -O2 Measuring System

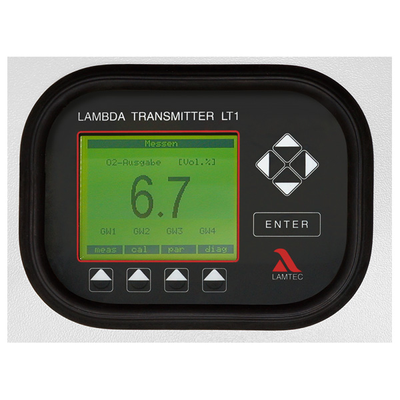

The LAMTEC Lambda Transmitter LT1 in combination with the LAMTEC probe LS1 is a universally applicable microprocessor-based measuring device. This measuring transducer has been specially developed for precise measurement of O2 concentrations in flue gases from combustion plants in the superstoichiometric range (λ > 1).
- Measurements for monitoring and optimisation; also for demanding combustions
- Highly accurate measuring of oxygen (O2) up to 21 vol.%
- Linear probe signal (direct current [mA]) with fixed physical zero point
- No special test gases required, automatic calibration with ambient air
- Automatic aging compensation of the ZrO2 measuring cell
- Up to 1.400 °C with ceramic sampling
- SIL 1 according to DIN EN 61508, parts 1-7
For connection to Lambda Probe LS1
For example ...
- in combustion exhaust gases
- in furnace atmospheres
- etc.
The system, which consists of LT1 and LS1, has a modular design and offers tried and tested solutions for most applications. For example, the LT1 can control the purging for high dust applications and the automatic calibration of the probe by means of a suitable combination of probe installation fitting and gas extraction (GED).
EC Type Examination Certificate
- DIN EN 61326-1
- DIN EN 61010-1
CE Declaration of Conformity
- 2014/35/EU (Low Voltage Directive)
- 2014/30/EU (EMC Directive)
- 2011/65/EU (RoHS)
SIL1
- DIN EN 61508, parts 1, 2 and 3
