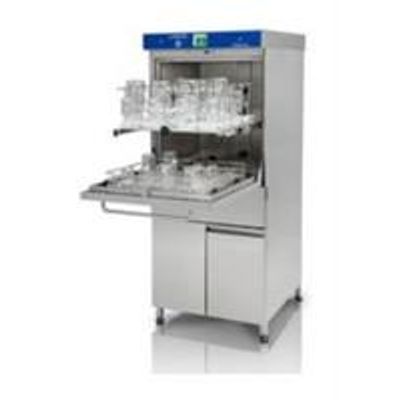

Lancer - Model 910 LX -Laboratory Glassware Washer Dryers

• Small footprint with surprisingly large capacity
• Powerful and rapid HEPA filtered drying through injectors and in wash chamber
• Increased safety with on-board storage and input of chemicals
• Ergonomic door level height allows convenient loading and helps to avoid back strain
• Higher grade 316 L Stainless Steel Chamber

All Lancer washers feature these key benefits:

• Fast cycles and outstanding results from powerful wash action and design
• Easy to use microprocessor controls with self-diagnostic software and alarms
• Flexibility of multi-level injection washing and interchangeable racks
• All sizes and types of glassware cleaned with chamber configuration choices
• Ergonomic and safe loading of racks on load bearing telescopic runners

Direct injection cleaning, HEPA filtered injector drying
The 910 LX provides injection washing and drying on one or two levels simultaneously, delivering the wash/rinse solutions into narrow-necked glassware to provide for efficient and effective cleaning. Three Washing positions are available and adjustable for the upper level and provide for greater wash load flexibility. Low profile, rear manifold connections provide wash/rinse solution to the racks, maximizing usable rack surface, which is often reduced by common center manifold designs. 100% of the chamber volume is then available for an unbeaten washing capacity in this size/range of glassware washer dryer. HEPA filtered chamber and direct injection drying reduces cycle time by drying glassware and labware inside and out. This fast turnaround of glassware increases productivity by reducing the waiting time for glassware.

Ease of Use
The 910 LX features microprocessor controls with 4 pre-set programs for chemistry glassware, bacteriology/virology (high temperature), stubborn stains (agar) and volumetric glassware (lower-temp). For other applications the 910 LX offers 38 additional programs that can be modified to fit any application. These custom programs offer the user the ability to easily adjust cycle parameters for program phases, temperatures, phase times and chemical dosing. The system control panel is user friendly with a 7 button keypad and 2 ½ inch LCD interface. Self-diagnostic software provides visual and audible alarms to quickly alert the user in the event of a malfunction, displaying the error and allowing the owner to avoid costly service calls. The 910 LX offers ergonomic loading height to reduce back strain. Additionally with on-board storage capacity, the 910 LX provides added safety.

Unbeaten cleaning and drying results
Lancer’s superior hydraulic design maximizes flow and pressure with a single, direct fluid path and no intermediate accessories.Additionally, racks are held in place by the door to ensure positive connection without the loss of pressure and flow that is common with other designs. Top and bottom spray arms provide thorough coverage for the interior and exterior of glassware. Water rinses are programmable for hot, cold and hot/cold DI water. These features allow for maximum use of the space within the chamber and ensure cleanliness. This design enhances full interchangeability of the racks between levels, providing further flexibility and reducing the number or racks needed.

Superior construction
The Lancer 910 LX washer is built to the highest standards. With AISI 316 L stainless steel and electronically welded chamber (under Argon protection) and door, the unit is fully enclosed on all 6 sides with AISI 304 L stainless steel to protect components and wiring. Maximum durability of the washer components ensures a long life span. Additionally, the 910 LX is insulated with synthetic rubber based, closed cell foam to guard against heat lost and reduce noise levels creating lower utility costs and a better user experience in the lab.

Inventory systems
Having the right rack or accessory to fit your cleaning application is key to ensuring cleanliness and increasing productivity. With this in mind, Lancer provides versatile rack systems to accommodate all types of glassware and laboratory items. These rack systems include a wide range of accessories with various configurations of sizes and quantities of jets or baskets to handle all types of glass and lab ware from bottles to pipettes. Racks can be interchanged between levels to achieve further flexibility.
