Andor - Model iKon-XL and iKon Large CCD Series -Large Area CCD Camera

The iKon-L is a superb 4 Megapixel, high-sensitivity CCD platform, delivering superb QE, low noise, high dynamic range and large field of view. This platform is used widely across astronomy and weak luminescence detection applications.

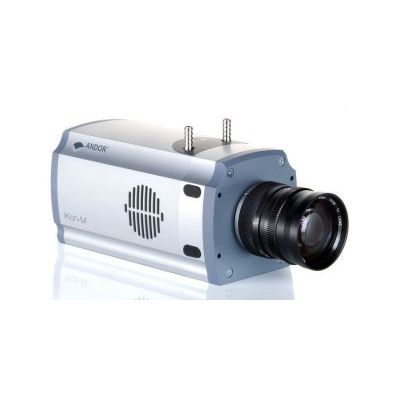

The iKon-M platform includes a 1 Megapixel NIR-enhanced Deep Depletion model, ideal for Bose-Einstein Condensation. The iKon-M ‘PV Inspector’ has been designed specifically for Photovoltaic Inspection.

NEW Dual AR Extended Range sensor options offer unparalleled back-illuminated QE performance across the broadest possible wavelength range, spanning UV to NIR.

• Thermoelectric (TE) cooling to -lOO`C
• Up to 16.8 Megapixel
• Up to 95% OE
• \fccuum design Up to 18-bit
• PV Inspector
• Up to 5MHz pixel readout
• Direct Interface Flexibility

• Negligible dark current, without the aggravation or safety concerns associated with LN2 or unreliable cryo coolers Market-exclusive TE cooling specs of -ioo`C with io`C water chiller/recirculator. down to -80"C with air-cooling via integrated low-noise fan
• iKon-XL platform offers outstanding field of view, while uniquely maintaining -100 "C TE cooling through patent pending ColdSpace"" technology.
• Back-illuminated sensors available for maximum photon capture and higher S/N ratio NEW Dual AR Extended Range` sensors for broadest OE coverage fromUVtoNIR.
• Proprietary and proven UltravacTM vacuum process, critical for sustained vacuum integrity, sensor protection and unequalled cooling, year after year
• iKon-XL platform offers unique Extended Dynamic Range technology, combining lowest noise and maximum well depth in a single scan
• iKon-M variant specifically for in-line inspection of Photovoltaics using EL or PL in the NIR
• Higher readout rates and quad output (iKon-XL) for faster dynamics or focusing
• "Plug and Play" connectivity direct from camera to PC.viaUSB3 0 and direct long distance fibre optic (iKon-XL) or USB 2 0 (iKon Land M).
