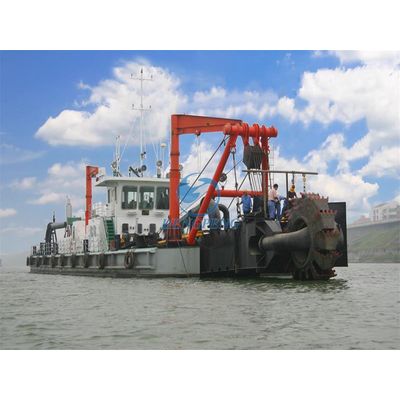

Hengpeng - Model 2200m3/H Water Flow Sand Dredger Cutter Suction -Large Bucket Wheel Dredger

Exceptional Cutter Head Suction Dredger - Precision-Crafted at Heng Peng Shipyard

# Unbeatable Prices on Dredging Units: 400-8000m3/H 100% Fully Hydraulic Cutter Suction Sand Dredgers Featuring High-Efficiency Diesel Engines
Ideal for River Channels, Sea, Lakes, and Port Engineering Projects
Tailored to Your Specific Needs

Product Description

1. Introduction:
The Cutter Suction Dredger, constructed with superior steel, is a non self-propelled, dismountable marvel. It can berth and dredge in any water body within coastal and inland river regions, adhering to the stringent navigation standards of area 'A' or below, as specified in the code for inland river steel engineering ship manufacture of P.R. China.

Our dredger excels at excavating and transporting cohesive sediments, adhering to class III dredging engineering construction standards issued by the Ministry of Water Resources of P.R. China.

The robust hull comprises three meticulously designed pontoons: one main pontoon (housing the engine room) and two side pontoons. All components are dimensioned for seamless transport by road, rail, or water. The YS-CSD450 dredger features an advanced rapid connection-disconnection system for the pontoons, using bolts at deck level, hull front and rear, and hooks at the bottom. Additionally, the dredger is powered by a high-performance Marine engine. The main engine drives the dredge pump and hydraulic pump, which, in turn, powers all other essential equipment such as the cutter, swing and ladder winches, and spud rams.

Constructed with an all-welded, steel design, the hull provides the necessary strength for rigorous dredging operations. The side pontoons are securely connected to the main pontoon via durable bolts.
The steel plates used for the hull are of CCSB grade (shipbuilding steel plate), ensuring unparalleled strength and durability.

2. Exceptional Features:
1. One-man operation facilitated by the most advanced PLC control system.
2. Innovative and highly efficient cutter/wheel drive system.
3. Highly reliable hydraulic system ensuring smooth operations.
4. Efficient fresh water cooling system for optimal performance.
5. Fully assembled and thoroughly tested before delivery, ensuring readiness.
6. Simple and rapid assembly, whether afloat or onshore.
7. Standardized design for prompt delivery times.
8. Standard spare parts readily available from stock.
9. Designed to meet the Coastal Waters Certificate standards.
10. A range of optional equipment available to suit your needs.

3. Hull Decomposition:

4. Explore our extensive range of top-tier products:
(Basic Technical Specifications of the Dredger)

HP 1504
HP 2006
HP 2508
HP 3010
HP 4014
HP 4514
HP 5514 AND PRO
HP 6014 AND PRO
HP 7514 AND PRO
learn more about
learn more about
learn more about
learn more about
learn more about
learn more about
learn more about
learn more about
learn more about
 RELIABLE HYDRAULIC  /ELECTRICAL OPERATION SYSTEM
 RELIABLE HYDRAULIC  /ELECTRICAL OPERATION SYSTEM
 RELIABLE HYDRAULIC  /ELECTRICAL OPERATION SYSTEM
 RELIABLE HYDRAULIC  /ELECTRICAL OPERATION SYSTEM
100% Full HYDRAULIC SYSTEM
100% Full HYDRAULIC SYSTEM
100% Full HYDRAULIC SYSTEM
100% Full HYDRAULIC SYSTEM
100% Full HYDRAULIC SYSTEM
One-man operation. The most advanced Siemens PLC   Control system.
Siemens PLC
Siemens PLC
Siemens PLC
Siemens PLC
Siemens PLC
Siemens PLC
Siemens PLC
Siemens PLC
Pump Water Flow Capacity could  400m3/H
Pump Water Flow Capacity could  500-600m3/H
Pump Water Flow Capacity could
800-900m3/H
Pump Water Flow Capacity could
1200-1400m3/H
Pump Water Flow Capacity could 2200m3/H
Pump Water Flow Capacity could 3000m3/H
Pump Water Flow Capacity could
3500-4000m3/H
Pump Water Flow Capacity could  5000-7000m3/H
Pump Water Flow Capacity could  8000m3/H
Discharge Distance  300m
600m
1000m
1200m
1500m
1500m
1500m-2000m
1500m-2000-2200m
3000m-4000m
4M Max. Dredging Depth
6--7M Max. Dredging Depth
8M Max. Dredging Depth
10M Max. Dredging Depth
14M Max. Dredging Depth

Main Parameter information: Customizable

Cutter Suction Dredger Specs HP-CSD3515
No.
Item
Parameter
Remark
1
Product Name
HP-CSD3515

2
Total Length
36m

3
Hull Length
25.0m

4
Hull Width
6.0m

5
Hull Depth
1.8m

6

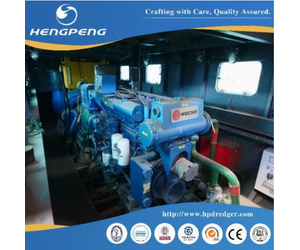

Main Engine
720KW Generating unit Attach
JICHAI POWER
7
Auxiliary Engine
24KW Generating unit
WEICHAI POWER
8
Dredging Depth
14m

9
Pump Water Flow Capacity
2000m3/h

10
Standard Discharge Distance
1500m

11
Cutterhead Dia
1.55m

12
Pump Discharge Dia
300mm
SHIJIAZHUANG
13
Pump Suction Dia
350mm

14
Water Flow
2000m³/h

15
Discharge Distance
1500m

16
Working Weight
130Ton

17
Spud Pile
450mm, two pieces, 18meters/piece

18
Hydraulic Winch
3 pieces

19
Navigation Ability
No

20
Operation System
PLC Control System and Hydraulic system

21
Spare Part
 Diesel engine tools,oliseal,eletric
welder and so on, 70 items.




Cutter Suction Dredger Specs HP-CSD5015
No.
Item
Specification

1
Product Name
HP-CSD5015

2
Total Length
39.00m

3
Hull Length
29.00m

4
Hull Width
8.00m

5
Hull Depth
2.20m

6
Main Engine


7
Auxiliary Engine


7
Dredging Depth
15m

8
Pump Water Flow Capacity
4000m3/h

9
Standard Discharge Distance
1500m-2000m

10
Working Weight
300T

11
Winches
3 Sets

12
Operation System
The most advanced Hydraulic and PLC control system

13
Delivery Time
120-150days.(There is stock available in the workshop, and delivery will be made within 7 days)


Certifications

Packaging & Shipping

*For smaller-sized dredgers, we ensure a smooth transportation process by utilizing containers. Each part of the split dredger is carefully lifted into containers at our warehouse. Once all cargo reaches the job site, our expert engineers will arrive to handle the assembly, rigorous testing, and comprehensive training.
* For larger-sized dredgers, transportation is efficiently managed via bulk cargo ships over sea routes, ensuring that all components are securely delivered to the job site. Our dedicated engineers will then proceed to the job site to oversee assembly, conduct thorough testing, and provide essential training.

After Sales Service

1. Comprehensive Lifetime Technical Support
2. Deployment of seasoned engineers to assemble and rigorously test the machine within the timeframe stipulated in the contract.
3. Establishing meticulous customer records to ensure exceptional long-term follow-up service.
