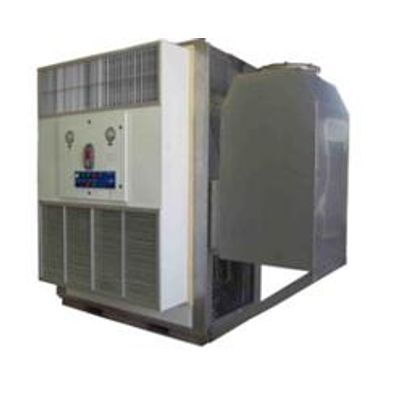

Marc - Model WMP Series -Large Capacity Wall Mounted Combination Systems
Large capacity, single package, wall mounted, combination air conditioner and Pressurization systems for use in industrial and/or hazardous applications.
Most popular related searches
wall mounted air conditioner
protective coating
hazardous area regulations
chemical filtration
air conditioner
corrosion protection
hazardous area
advanced filtration
industrial hazard
environmental chamber
- Factory certified for compliance to applicable codes and standards
- Spark resistant fan and blower construction
- EPA approved HFC type refrigerants
- Single cut-out requirement for building wall
- Supply and return air registers for ductless air handling
- Through-the-wall controls section for indoor access to operating controls
- Built-in automatic controls and equipment to manage safe air and maintain positive pressure and purge air flow to meet NFPA 496, Type X, Y, or Z requirements for the space
- Protective coatings for prolonged life of cabinet and chassis
- Total nominal cooling from 7.5 to 25 tons
- Type 304 or 316 stainless steel cabinet and chassis for corrosion protection
- Electric heat (limited by temperature code and system size)
- Three phase operation in 60 or 50 Hz applications
- Configurable for operation in various non-hazardous and hazardous rated locations
- Corrosion resistant coatings for refrigerant coils and tubing (proven to withstand 10,000 hours of salt spray test)
- Protective component coatings for prolonged life in corrosive environments
- Totally Enclosed Fan-Cooled (TEFC) motors
- Advanced chemical filtration packages
- Low/High ambient packages for operation in extreme environments
- Environmental control
- Control rooms living quarters, plant office buildings, break rooms, and other manned applications.
- MCC, RIE, DCS, LER, power, and switchgear buildings
