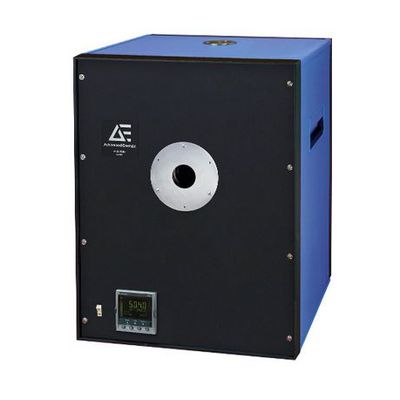

Advanced Energy - Model Mikron M300 -Large, High Emissivity Blackbody Calibration Source, 200 to 1150°C
Advanced Energy’s Mikron M300 is a high standard, precision blackbody calibration source. It features a uniformly heated spherical cavity that achieves a near ideal emissivity of 0.998 or better. Superior accuracy within ±0.25% of reading ±1°C. Large 51 mm aperture diameter. High effective emissivity 1.0 at 0.7 to 1.8 µm, 0.998 typical at other wavelengths. Rugged housing.
The Mikron® M300 blackbody calibration source accurately delivers any temperature between 200 to 1150°C (392 to 2102°F). A convenient micro-processor-based, digital PID controller maintains your select temperature to within 1°C for accurate calibration. The accuracy of the M300 is backed by tests, burn-in times, and radiometric calibrations.
- Accurately deliver any temperature between 200 to 1150°C (392 to 2102°F)
- Meet rigid quality control standards
- Rely on fast heat-up times and high temperature stability
- Achieves a near ideal emissivity of 0.998 or better
- Achieve superior accuracy within ±0.25% of reading ±1°C
- Manufactured and tested to meet rigid quality control standards
- Furnished with certificate of calibration traceable to NIST
- RS232 (standard) or RS485 (optional) serial communications port
- Convenient micro-processor-based, digital PID controller
- Rugged housing designed for fixed installation in laboratory or test department
Measurement Specifications
- Temperature Range: 200 to 1150°C (392 to 2102°F)
- Temperature Uncertainty: ±0.25% of reading ±1°C (when using calibration certificate correction factors)
- Temperature Resolution: 0.1 °C
- Stability:
- ±0.5°C per 8-hour period
- Provided stable AC main voltage and minimum air flow across the exit port or emitter plate
- Source Non-Uniformity: ±0.1% of reading ±1°C
- Heated Cavity Shape: Spherical
- Exit Port Diameter: 51 mm (2 in)
- Emissivity:
- 1.0 effective at 0.65 to 1.8 pm.
- 0.998 for others
- Standard Calibration Method: Radiometric (pyrometric)
- Temperature Sensor: Thermocouple
- Warm-Up Time: Approximately 1 hour from ambient to 1000°C
- Slew Rate tore Stability:
- -5° per minute ambient to 200°C
- -12° per minute 300 < T < 800°C
- -8° per minute avg T > 800°C
- Slew Rate to 0.1 °C Stability: -60 minutes between A 100°C set points
Communication / Interface
- Remote Set Point: Via serial port
- Method of Control: Digital PID controller
Environmental Specifications:
- Operating Ambient Temperature: 0to44°C(30to110°F):
- Cooling: Fan-cooled, air: inlet on rear panel
- Operating Humidity: < 90% RH max.: non-condensing
- HxWxD: 640 x 500 x 572 mm (25.2 x 19.7 x 22.5 in):
- Weight: 80 kg (175 lb):
- CE Certified: Yes:
Electrical
- Power Requirements: 208/230 VAC ±10% 50 and 60 Hz 11 A max
