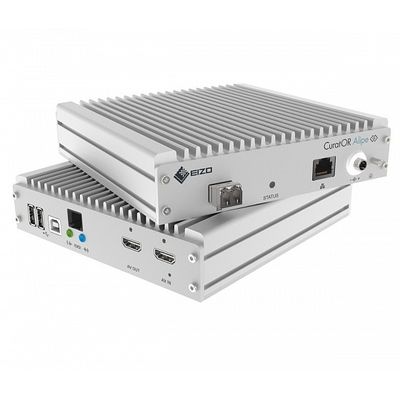

Eizo - Model TIP0810-HDMI -Large Monitor Manager

• Uncompressed, loss-free data transmission of 10 Gbit/s
• Transmission with zero latency, for better hand-eye coordination
• Multiple views on a monitor possible through one signal
• Passive cooling

Lossless Transmission up to 4K

TIP0810-HDMI transmits data up to 4K UHD resolution (3840 x 2160) at 60 Hz with speeds as high as 10 Gbps. The device achieves this without compression, ensuring optimum image quality.

Instantaneous Image Viewing

Images are transmitted without any visual delay, offering a seamless hand-eye coordination experience for the attending physician. He/she receives direct visual response to his/her actions, for example during endoscopic interventions.

Extensive Transmission Distance

Data is transmitted via fiber-optic cable, enabling transmission distances of up to 10 kilometers. As a result, not only separate rooms, but entire buildings can be linked to one another, with image data and audio seamlessly transmitted between them. This is useful for transmitting data within and outside of the OR, as well as to conference rooms, lecture halls, and other locations.

Universal Application

The TIP0810-HDMI can be used for both encoding and decoding data. This simplifies installation and saves on time and labor costs associated with storage and maintenance of the entire system.

Scalable System

The TIP0810-HDMI is fully compatible with the IP Transceiver TIP0210-DVI and TIP0410-HDMI. This makes integration scalable and cost-efficient. Furthermore, existing installations can be extended with the TIP0810-HDMI to support 4K modalities.

Remote Operation Possible

IP-based data transmission enables the use of the same network cables for the transmission of all information, whether image, audio, video, or control of a keyboard and mouse. Thus for example, a computer in a remote computing center can be operating via the EIZO system directly from OR.

Integrated Video Management

Various video sources can be displayed simultaneously on a screen using a single cable. This enables various multiple views.

Passive Cooling

The IP Transceiver implements passive cooling for noiseless operation and minimal mechanical wear. This also eliminates any interference with the laminar flow in the OR to prevent unwanted movement of dust particles and bacteria.

Integration into Existing Systems

The IP Transceiver is compatible with a wide assortment of commercially-available network components and can be integrated into existing systems and applications.

General

• Cabinet Color: Silver
• Certifications & Standards (Please contact EIZO for the latest information): CE, IEC60950, tested for IEC60601-1-2, RoHS, Reach, WEEE
• Optional Accessories: Optical module (SFP+ 10G LC), power supply, connecting und mounting accessories

Network

• Data Rate: 10 Gbit/s
• Connector: SFP+ (10 GbE, optional SFP+ module)
• Cable: LWL duplex LC/LC (SFP+ module necessary)

Video Signals

• Input Resolution: Up to 4K (3840 x 2160), 1 x uncompressed, 60 Hz
• Output Resolution: Up to 4K (3840 x 2160), 1 x uncompressed, 60 Hz
• Interface: HDMI 2.0 (in), HDMI 2.0 (out)
• Modes: Single In / Single Out (up to 4K/60Hz)
• Multiview: Side-by-Side, Picture-in-Picture, QuadView

Interface Specifications

• Audio: Audio jack x 2 (in, out)
• USB Ports: USB/A x 2, USB/B,

Features & Functions

• Controls and Status: Mouse and keyboard control
• Remote Control: Remote diagnosis, remote firmware update

Power

• Power Requirements: External power supply, 230 AC
• Power Consumption: 17 W, optional: 5 W (for USB), passive cooling

Physical Specifications

• Net Weight: 1050 g
