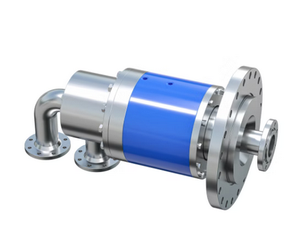

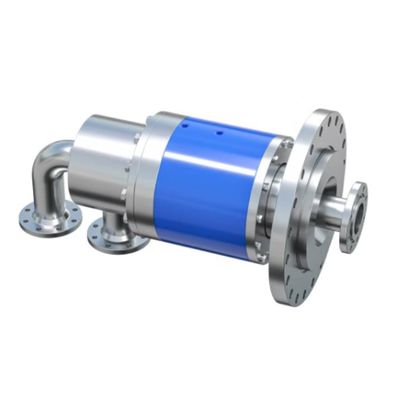

KJ3-Rotary Joints are suitable for thermal oil up to 400°C and for rotational speeds of up to 2000 min-1. These applications can be found, for example, in coating and laminating plants, in paper, non-woven and textile calendars, in dryers and in rotary reaction vessels.
MAIN DESIGN FEATURES
- Much longer service life than other rotary joints.
- Longer machine availability and appropriate maintenance schedules due to constant monitoring of the rotary joint function via the cooling unit.
- Significantly reduced risk of thermal oil and oil vapours escaping.
- The primary seal is pressure balanced and free running.
- A seal protector disk provides protection against coarse contamination.
- Further safety due to the externally loaded mechanical seal.
- The secondary seal is subject to low stress thanks to the cooled barrier fluid
- Insulation of the rotor protects the bearings from high temperature and prevents energy loss.
- The function of the rotary joints is monitored via control elements on the cooling unit.
- In case of leakage, it is possible to continue producing up to the next scheduled shut down
A rotary joint is a mechanical tool that lets in the switch of fluid from a stationary supply to a rotating detail. These joints can address various media, which incorporate steam, water, air, hydraulic fluid, and more.
- Paper and Pulp Industry
- Textile Industry
- Food Processing Industry
- Chemical Industry
