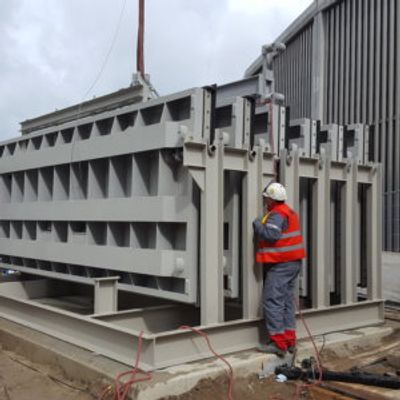

Profilter - Model ZK-S-MT -Large-Size Water Gates
Sealed along four edges. Two-sided leak proof for pressures up to 6 m of water column. Lifting mechanism featuring constant height of the power screw top end. Made fully of stainless steel. Applicable for inlets from channels of rectangular or circular cross section. Optionally equipped with electric power drive and related accessories.
Most popular related searches
industrial wastewater treatment plant
wastewater treatment plant
communal water
community water
drainage system
wastewater treatment
water gate
community wastewater treatment
wastewater treatment industry
water treatment plant
Possible applications – stopping water/wastewater inflow in:
- communal water/wastewater treatment plants
- industrial plants
- melioration systems
- drainage systems, e.g. for roads and motorways
Installation:
- installation by means of intermediate angle steel and chemical anchors
- no cutting of the concrete structures required
- if needed, can be fitted with special attachments for leak proof installation to the window in a round chamber
Materials used:
- made fully of stainless steel grade 1.4301 or other on request
- sealing: EPDM (Ethylene Propylene Diene Monomer) rubber or NBR (Nitrile Butadiene Rubber)
