Vibsens - Model V6000 -Large Sized Machinery Protection System

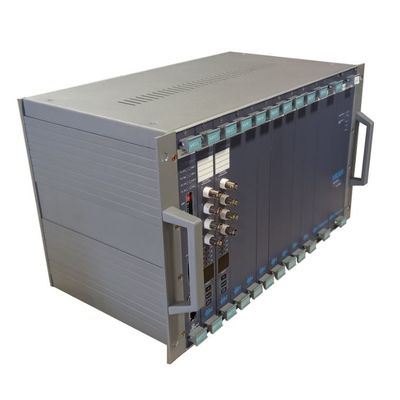

V6000 system is a total solution for the vibration measurement and continuous on-line protection with condition monitoring (optional) of medium to large sized critical plant machinery. V6000 machinery protection system is a modular rack-based system developed for continuous machinery protection & condition monitoring platform designed to fully comply with American Petroleum Institute Standard 670 for machinery protection systems. Up to 30 vibration/position/speed inputs and 8 temperature/process variable inputs can be monitored and displayed in a single 19” rack. The system measures and alarms on a wide variety of vibration, position, speed, temperature, and process variable inputs. All necessary monitoring functionality is provided using only four basic module types, simplifying spare parts requirements and making it customizable for every application.
Easy setup with V6000 configuration tool for performing protection monitoring of one or several machines.
Measured values are shown on the local indicators and also transmitted to PLC/ DCS/ HMI with Modbus RS485 or 4-20 mA output.
Connecting to condition monitoring and diagnostic software easily whatever. With V6000 there are no external modules, no additional wiring and no extra rack slots required. Simply use the Ethernet port in the V6000-G Rack Interface Module and a single network cable to communicate with our Vibsens-PRO software
Analogue Inputs : -IEPE / voltage mode accelerometer
-Proximity probe
-Velocity Sensors
-KeyPhasor®/ Tachometer
-Any type of voltage or current output transducers
Input Channel : 4 up to 28 vibration channels, 2 keyphasor channels and up to 8 multifunction channels (4-20mA)
Input Connector : ScrewTerminal
Signal Conditioner : Amplifier/integrator to obtain velocity or displacement response by integration
Frequency Response : Acceleration and Velocity and Displacement: 2 to 10,000 Hz (In Factory Defined) Thrust / Position :DC
Over Voltage : 2.5 V Pk-Pk
Input Voltage : 220 VAC
Analog Outputs : Four 4-20mA outputs per card
Logical Outputs : 8 (4 Alerts, 4 Danger) per card , 1 malfunction
Relay Specification : Form C, SPDT, 1 Amp 110 VAC,Latching or Non-Latching Selectable Normally Energized or Normally De-Energized (User Defined) Bypass Relay or Active Relay Selectable
Alarm Time Delay : 1 to 60 Seconds (User Defined)
Accuracy : 1% Full Scale
Reset Function : Push Button /Terminal for Remote Reset if Latching Alarms Selected
Trip Multiply Function : Terminal for None , variable 10 to 90% Alarm Trip multiply
Alarm Indication : OK = Green LED, Alert = Yellow LED, Danger = Red LED
Dynamic Range : 65dB
Local Indicators : Up to 20 parameters and adjusting configuration With 7Segment Front of Cards
Phase Linearity : (0.1 Hz to 10 kHz ) ±1 deg
Buffered Outputs : 2 type Buffered Outputs :With sensor offset / without DC
Detection Mode : RMS, True Peak, True Pk-Pk
Resolution : 12 bit
Sample Rate : Up to 4 KHz synchronous sampling
Communication with HMI : 3 redundant Serial port RS-232/RS-485 Modbus RTU Protocol
HMI Software : Any standard HMI Software Like Wincc
Communication with CMS : Ethernet (10/100 base T) Vibsens Protocol
CMS Software : VibSenS-CMS
Measurement Units : m/s2, mm/s, μm
Output Voltage For Eddy Current Transducer : -24 VDC (Optional)
Standard communication : HMI Communication (Modbus RTU protocol (3port))
Modbus TCP/IP (optional)
Profibus (optional)
