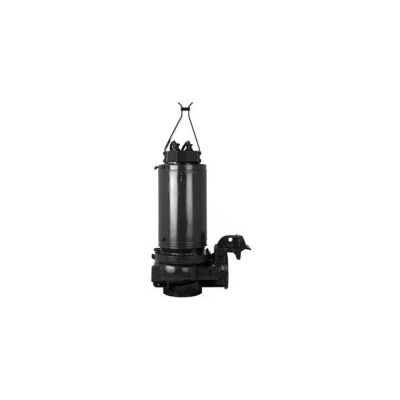

EBARA - Model DSC4 & DSCA4 -Large Submersible Cast Iron Wastewater Sewage Pump
The model DSC4, DSCA4 submersible pumps are constructed of rugged cast iron with heavy duty, high efficiency motors suitable for industrial and municipal water and wastewater, sewage and flood control applications. The large submersible non-clog pump has the ability to pass large spherical solids and can be installed in wet or drypit applications.
Most popular related searches
flood control
cast iron sewage pump
sewage
submersible pump
water leak
municipal water
cooling system
sewage pump
cast iron submersible sewage pump
sewage controller
Applications
- Water
- Wastewater
- Sewage
- Flood control
Features
- Watertight cable entry system with redundant protection assures safe operation and protects against water leakage into terminal casing; reduces maintenance costs
- Terminal board provides easy cable connection
- Heavy duty, high efficiency, compact designed motor with thermal detector for each phase of winding; inverter duty rated and FM approved
- Self cooling system with cooling jacket eliminates the need for external pumping devices or special heat transfer fluids; offers simplicity and high reliability by effectively dissipating heat
- Float type leakage detector provides early warning of mechanical seal failure; avoids costly motor repairs
- Cartridge type, duplex mechanical seals assembled in tandem arrangement; easy maintenance and high reliability
- Available with semi-open or enclosed impellers
Specifications
- Discharge Size: 6″ to 12″
- Range of HP: 50 to 145 HP
- Capacity: 530 to 7000 GPM
- Head: 23 to 300 Ft.
- FM explosion proof available
