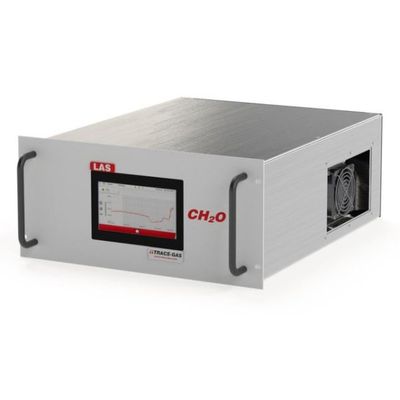

TRACE-GAS - Model LAS CH2O -Laser Absorption Spectroscopy Gas Analyzer
The TRACE-GAS CH2O analyzer combines reliability, fast response and ease of use in one instrument. Designed for calibration-free and direct measurement of formaldehyde (CH2O).
Most popular related searches
laser absorption spectroscopy
laser absorption gas analyzer
gas analyzer
absorption spectroscopy
laser absorption analyzer
laser gas analyzer
fence line monitoring
indoor air monitoring
workplace indoor air
spectroscopy analyzer
- no cross sensitivities
- no calibration required
- selective, continuous real-time measurement
- spectral correlation check
- no formation of condensate
- no consumables
- no additional components (ready-to-use)
- purely physical measuring principle required
- Stationary (test chambers) + transportable measurement (battery operation)
- Monitoring of outgassing from indoor building products
- Formaldehyde measurement in exhaust gas from gas engines/turbines
- Online concentration measurement for process control (continuous measurement)
- Concentration monitoring at the workplace
- Indoor air monitoring
- Fence-line monitoring
- Emission monitoring of wood products
- Emission measurement of vehicles
- Ambient temperature : 10 - 35 °C
- Ambient pressure : 800-1100 mbar
- Gas flow : < 0,8 l/min
- Communication : Modbus TCP/IP + analog output 4 - 20 mA
- Dimensions (L x W x H) : 567 x 485 x 221 mm, 19" housing
- Weight : approx. 19 kg
- Supply voltage : 100 - 240 V AC/50 - 60 Hz
- Measuring range (FS) : 0 - 10 ppm
- Limit of detection (LOD) 1 : ≤ 5 ppb (2σ)
- Response time (t10-t90) 2 : ≤ 30 s
- Linearity (greater of) : ≤ ± 0,5 ppm or ± 1 % of measured value
- Zero drift : ≤ 50 ppb in 8 h
- Span drift : ≤ ± 1 % FS in 8 h
