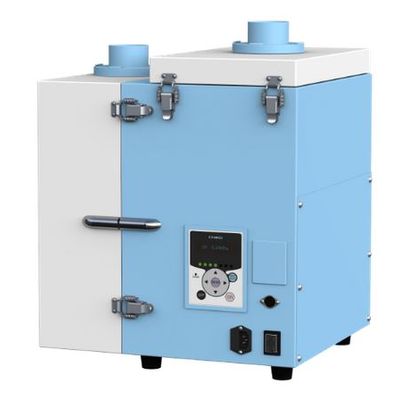

Chiko - Model CBA 1000 Series -Laser Clean Dust Collector

Cassette type deodorizing filter

Uses a cassette filter incorporating zeolite(combined filter and fume adsorbent substance). Zeolite is scattered by sucked in air and instantaneously laminated onto the filter surface,to prevent the adhesion of fumes to the filter surface.

Remote cable

(sold separately/model: Using MT-173-8 (3 m) enables remote operation of peripheral equipment.

1. Operation input signal
2. Operation pressure signal (DC1-5V)
3. Filter clogging signal
4. Remote-control operation switching input signal
5. Operating signal
6. Abnormality signal
7. Change of operating level input signal (DC0-5V)
8. Gnd
