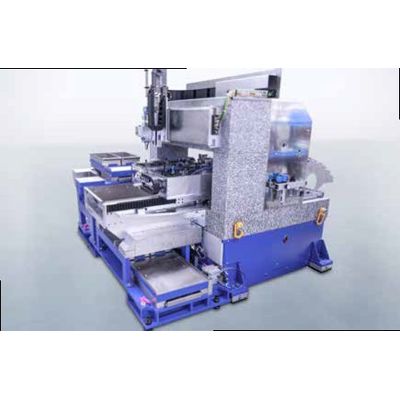

Weil - Model LCC -Laser Cutting Cell
Laser cutting cell for highly dynamic 2D- and 2 ½D machining. LCC combines the highest dynamics with maximum accuracy through the concept of decoupled machining axes.
The machine base body with upright gantry portal – made of natural granite – is designed for maximum vibration rigidity and temperature consistency. The main axes are equipped with linear direct drives, with which contour accuracies of +/-0.02 mm can be achieved, even at high accelerations.
The modular clamping concept allows the LCC to be used in a wide variety of applications:
- as a stand-alone system
- for autonomous coil/plate operation
- for integration into a line linkage
- for thin sheet processing with wall thicknesses of 0.15 mm - 0.5 mm
