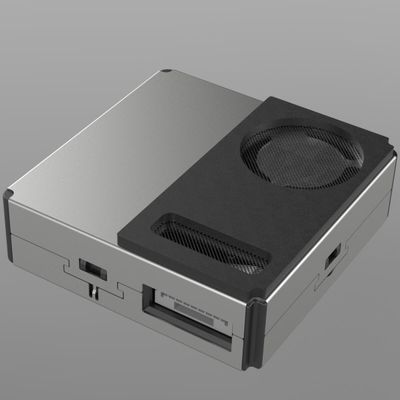

Pulse Sensor - Model PS53013 -Laser Dust Sensor

• Accurate and reliable data output
• Small size, convenient for installation
• Available for PM1.0, PM2.5, PM10 and BSP detection
• Anti-interference capability
• Standard TTL serial port data output
• Specific laser anti-attenuation & constant brightness function
• Low power consumption
• High precision detection for large particulate matter
• Multi-channel particle size identification

Application Environments

• Air Purifier
• Fresh Air System
• Air Conditioner
• Car Air Purifier
• Air Quality Detector
• Environmental Monitoring
• Handheld Air Quality Detector

• PM1.0 0-1000μg/m3 ±10% or ±10μg/m3
• PM2.5 0-1000μg/m3 ±10% or ±10μg/m3
• PM10 0-1000μg/m3 ±15% or ±15μg/m3
• BSP* 0-600μg/m3 ±15% or ±15μg/m3

• Data Interface: UART TTL, 9600 bps
• Power Supply: DC 5±0.5V, Ripple<50mV
• Working Condition: Temp: -15-60?; Humidity: 0-90% RH
• Storage Condition: Temp: -30-70?; Humidity: 0-90% RH
• Weight: 27g
• Size: 45mm x 45mm x 14.5mm
• MTTF: ≥30000H
