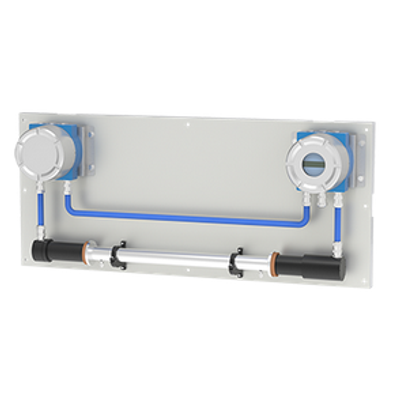

Zetian - Model LGT-160 -Laser Gas Analyzer (By-Pass)
LGT-160 is a kind of explosion-isolation by-pass tunable laser gas analyzer, which is developed for industrial online analysis and environmental online monitoring, especially suitable for high temperature, high humidity, high dust, high pressure and other harsh working conditions, as well as small pipelines and other occasions which are not suitable for in-situ installation and measurement. It can online analyze O2, CO, NH3, CO2, CH4, H2O, HCl, HF, HCN and other gases under various complex working conditions (Note: a single analyzer can only analyze 1~2 components). The measured gas concentration ranges from constant to trace.
Most popular related searches
laser gas analyzer
in-situ laser gas analyzer
gas analyzer
chlor-alkali industry
industrial gas monitoring
explosion isolation
gas analysis
process analysis
industrial gas
bag filter
- Suitable for poor conditions of high dust, high humidity, high pressure and high temperature,as well as small pipelines which are not suitable for in-situ measurement
- Integrated explosion-isolation design, with good reliability and stability
- Innovative Hall button: good sensitivity, simple operation
- Support automatic calibration and automatic backblow function
- Trace H2O monitoring and analysis in natural gas and chlor-alkali industries; gas monitoring and analysis at inlet of coal mill and at outlet of bag filter; waste gas analysis at flue of hot air furnace, etc.
- Linearity error: ≤1%F.S.
- Zero drift: ≤1%F.S./half a year
- Span drift: ≤1%F.S./half a year
- Ex-mark: ExdIICT6 GB
- IP grade: IP66
- Response time: ≤30s (related to working condition)
- Analog input: 2x4-20mA input
- Analog output: 2x4-20mA output
- Digital communication: RS485/RS232/GPRS
- Working temperature: -20℃~60℃
- Purge gas: (0.3~0.8) MPa nitrogen, purified instrument air
