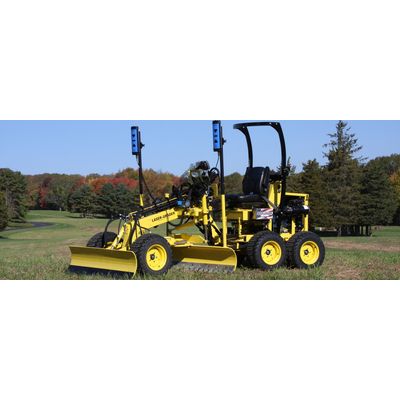

Laser-Grader - Compact Grader Machine

SHARE

The Laser-Grader offers an unusual blend of grading accuracy, versatility and production capability. In addition to achieving a uniform surface, the Laser-Grader will also increase productivity, improve material yields and reduce your overall operating costs. If accuracy is a requirement in your line of work, the Laser-Grader, equipped with an automated grade Control Package, has no equal.

The Laser-Grader is a manually driven, diesel powered compact grader that steers conventionally, and articulates to turn in as little as a 9 foot (outside) turning radius. It`s hydrostatic transmission and six wheel drive system combine for maximum pushing power at slower travel speeds making the Laser-Grader well suited for close grading around columns, footings and utility roughs.

When working with material sized of 3/4" or smaller, the Laser-Grader is accurate to +/- 1/8". In open areas such as synthetic or natural grass playing fields, the Laser-Grader can easily finish grade in excess of 50,000 square feet per day.

The Laser-Grader weighs 3400lbs, eliminating the uneven compaction typically created by the wheels of heavier equipment, and making transporting the machine much easier than that of a larger machine. Plus, the Laser-Grader fits through a 5-foot opening, making it suitable for operation inside framed structures.

  • Increased Productivity - less surveying, staking and grade checking
  • Lower Costs - Machine control gets the job done right the first time
  • Faster, more efficient completion of jobs
  • Improved material yields
  • Easily transported from job to job
  • Gain a competitive advantage over your competition
  • Reduce manual labor costs
  • Finish grade withint 1/8" accuracy
  • 6 wheel drive via hydraulic wheel motors
  • Fully articulated design
  • 5ft inside & 9ft outside turning radius
  • Moldboard rotation, shide shift and lift
  • Diesel powered
  • Hydrostatic Transmission
  • Power steering
  • ROPS certified roll bar
  • Adjustable bucket seat
  • Flame cut walking arms provide stability
  • Neutral safety switch ignition
  • Front pusher blade

  • Overall Length (to pusher blade): 11`6"
  • Overall Width (excluding blades): 4`
  • Overall Height (top of roll bar): 7`2"
  • Front pusher blade width: 5`
  • Moldboard Width: 6`
  • Moldboard Height: 12"
  • Weight: 3400 lbs.
  • Infinitely Variable Speed: 1-10 mph
  • Engine: Kubota Diesel D1105 (Liquid cooled 61 cubic inch): 3 Cyl. / 25 hp
  • Outside Turning Radius: 9 ft.
  • Inside Turning Radius: 5 ft.
