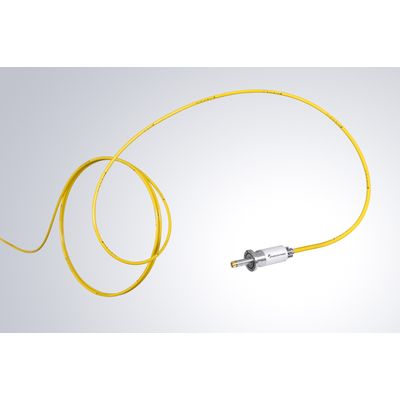

Photonic Tools - Model LLK-UKP -Laser Light Cable For Industrial Ultrafast Lasers
The LLK-UKP is an advanced laser light cable designed specifically for industrial ultrafast lasers. This high-performance optical cable features precision-engineered connectors on both the laser and optics sides, ensuring minimal loss and high transmission efficiency. Its robust protective conduit safeguards the delicate internal components, making it suitable for demanding industrial environments. The cable also includes a monitoring and electrical interface that facilitates real-time diagnostics and operational control, enhancing reliability and performance. Offering customizable options, this cable meets various application-specific requirements. Note that all data are subject to change as per specific coupling conditions and latest product updates.Most popular related searches
laser optical
water cooling
temperature monitoring
interface monitoring
gas pressure monitoring
cooling water
hollow fiber
gantry robot system
pressure monitoring
water activity
- Length of cable including connectors : 2, 3, 5, 10 m *
- Fiber : Micro structured hollow core fiber
Optical Parameters
- Beam parameter acceptance : Single mode laser beam
- Mode field diameter : 40 µm (IR), 25 µm (green), *
- Max. average laser power : 500 W **
- Max. pulse energy : 500 µJ **
- Wavelength : 900 - 1100 nm (IR), 500 - 550 nm (green)
- Typical transmission : 93% +/- 3% / 5 m length
- GVD parameter : +/- 3 ps / (nm*km) ***
Connector laser side optics side
- Optical pre-alignment : PT-F (Photonic Tools flange design), others on request
- Cooling : Can be actively water-cooled
- Max. gas pressure : 5 bar
Monitoring and electrical interface
- Breakage, plug-in and temperature monitoring for
- interfacing to continuity monitoring : PT-F standard
- Relative temperature and stray light indicators (optional) : On request
- Data logging : On request
Protective conduit
- Suitable for dynamic movements on robot or gantry system in a cable management system :
- Bending radius : > 250 mm
